Topcon Compu-Vision CV-5000 User Manual

51
2. INSTALLATION
2.6 INITIAL SETTINGS (REGISTERING THE VISUAL ACU-
ITY CHART OR OTHERS)
1 Turn on the power supply unit and start the CV-5000 software through the personal com-
puter.

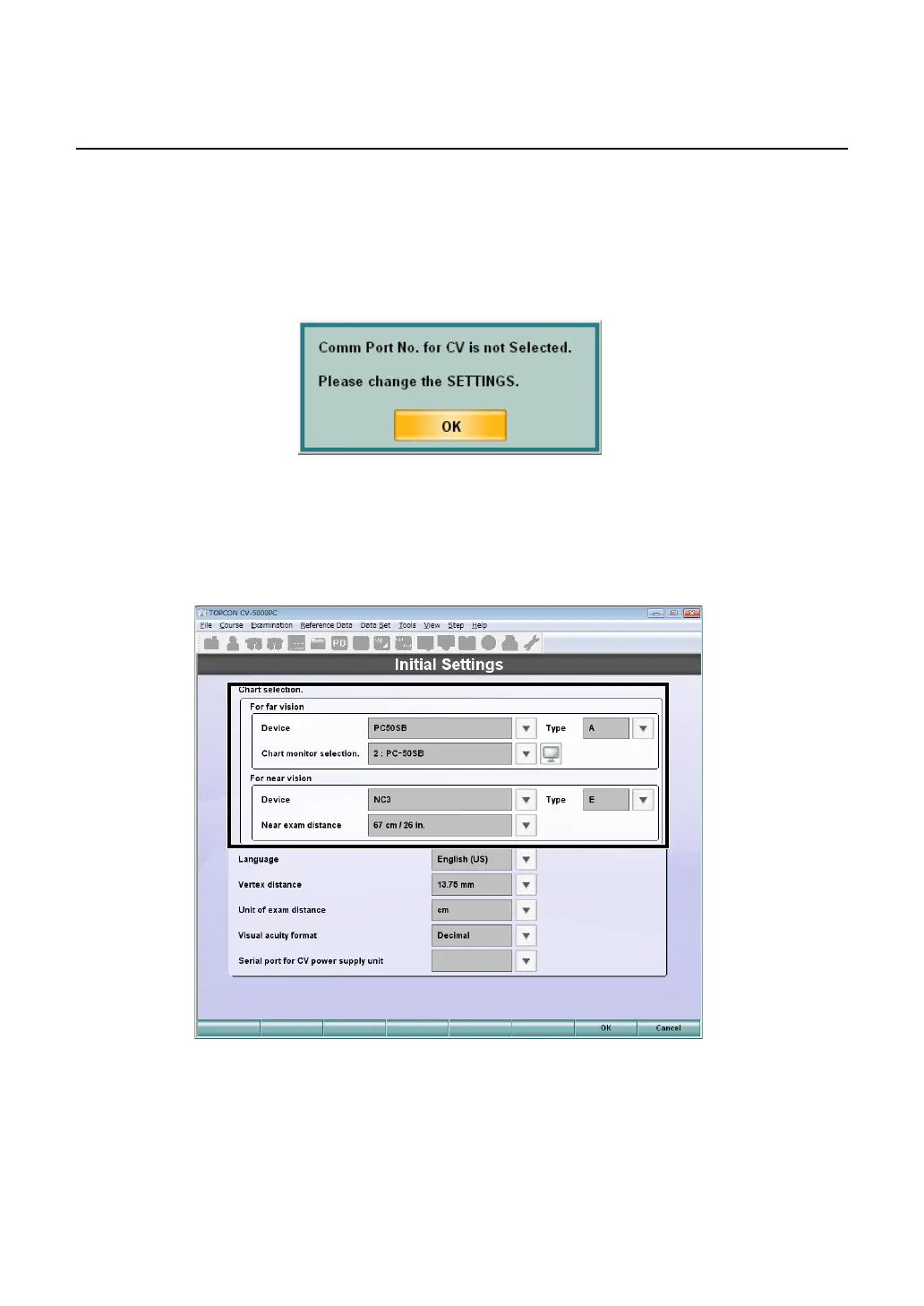

The dialog box, which shows that the number of the COM port to be connected with the
CV system is not set, is displayed.
Click the [OK] button, and the "Initial Settings" screen appears.
2 Select a visual acuity chart to be connected.
Select "Device" (device name), "Type" (type name) and "Interface" (connection method)
of the distance visual acuity chart and "Device" (device name), "Type" (type name) and
"Near exam distance" of the near-point visual acuity chart.

Topcon Compu-Vision CV-5000 Specifications

General

Brand	Topcon
Model	Compu-Vision CV-5000
Category	Medical Equipment
Language	English
