Surveying with the HiPer+
1-866-4TOPCON www.topconpositioning.com
3-21

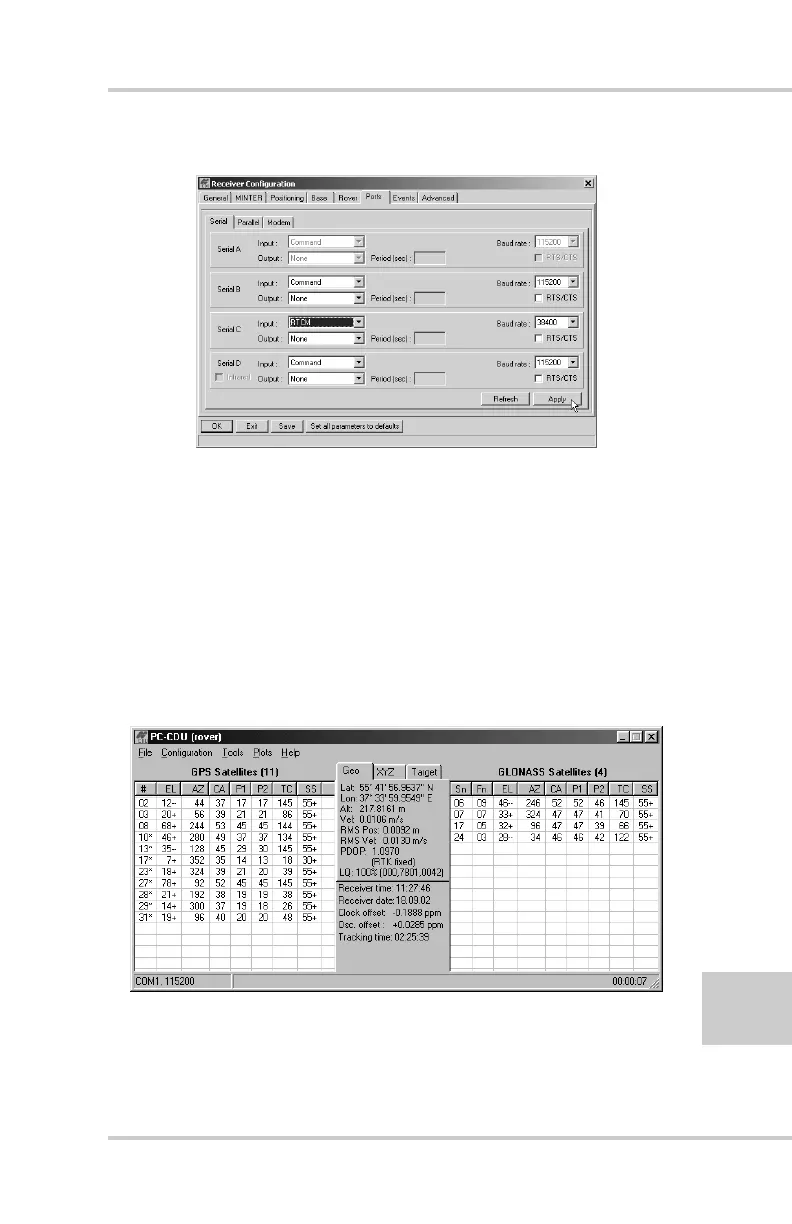

Figure 3-13. Rover Configuration – Ports
7. Click Apply.
8. Click OK to close the Receiver Configuration
screen.
9. On the main screen (Figure 3-14), check the LQ field
to ensure the receiver obtains differential corrections.
Usually, the receiver will start to output the
coordinates of the antenna’s phase center along with
the solution type within 10–30 seconds.
Figure 3-14. PC-CDU Main Screen
