Configuration
Topcon HiPer+ Operator’s Manual
2-8
1. Once the receiver and a computer are connected, start
PC-CDU on your computer. The PC-CDU main screen
displays (Figure 2-1).

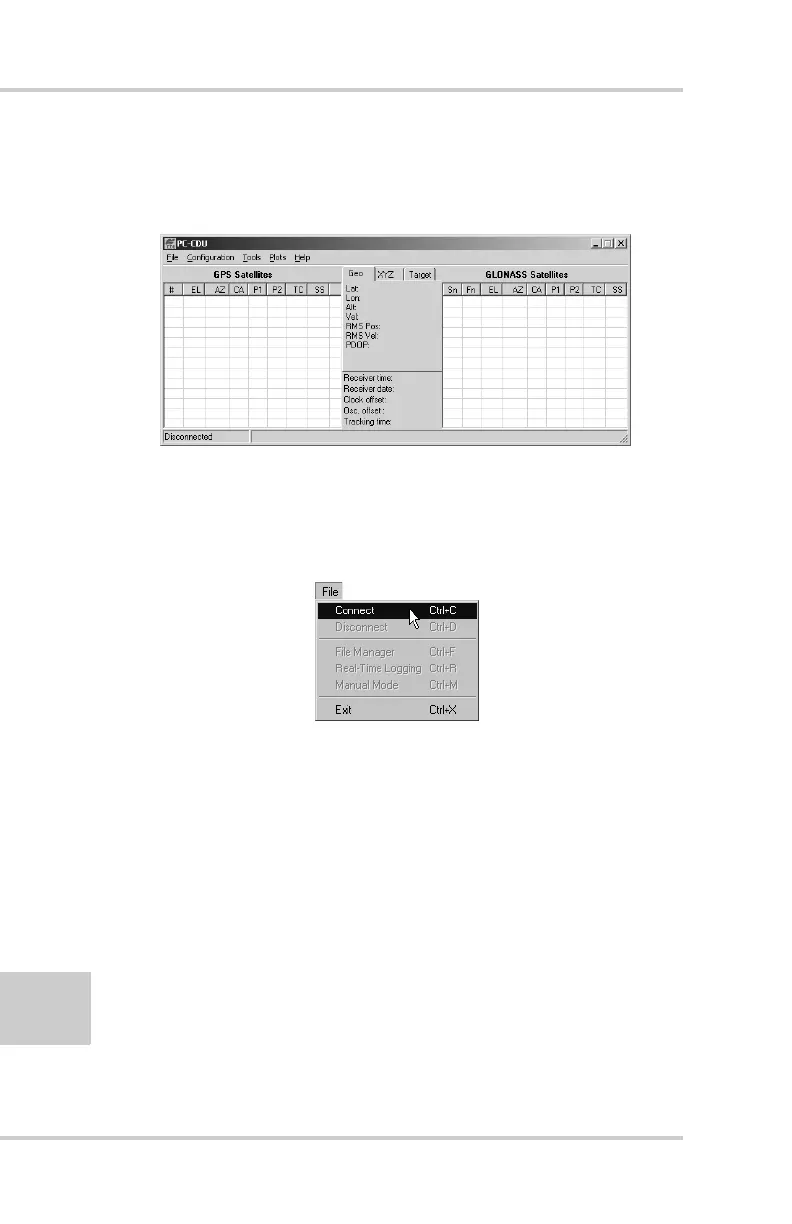

Figure 2-1. PC-CDU Main Screen
Notice that the lower-left hand corner shows the receiver
status as “Disconnected”.
2. Click File->Connect (Figure 2-2).
Figure 2-2. Click File->Connect
3. On the Connection Parameters dialog box, select the
following parameters for Bluetooth or RS232
connections and click Connect (Figure 2-3 on page 2-9):
• Set the Connection mode (Direct).
• Set the port for your computer (typically COM1) from
the Port drop-down list.
• Set the communication rate between the receiver and the
computer (usually 115200) from the Baud rate drop-
down list.
