Topcon HiPer Plus - Bottom Panel; External Components; Radome; Hiper+ Radome

Introduction
Topcon HiPer+ Operator’s Manual
1-14
External Components
The HiPer+ casing includes a connector for modem antenna
attachment, a user interface, a power port, and ports for
configuration.
Radome

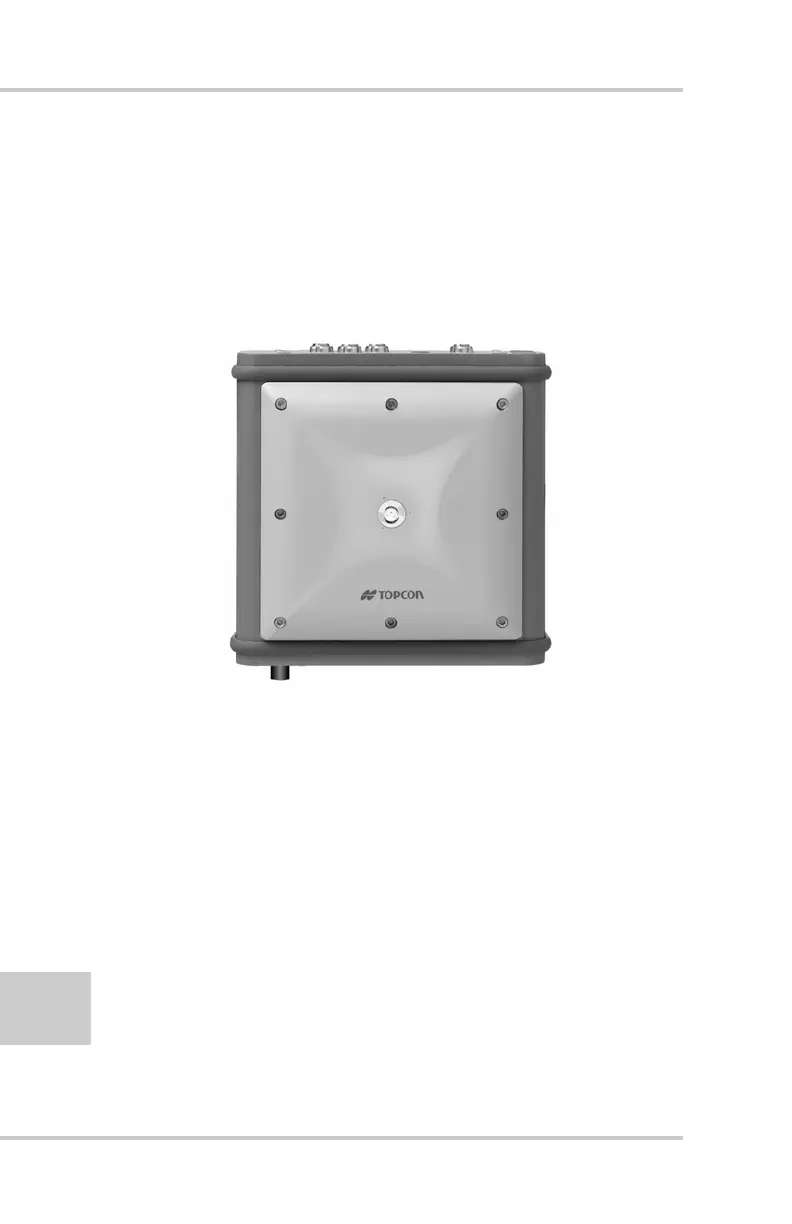

Figure 1-2 shows the radome components.
Figure 1-2. HiPer+ Radome
• Internal antenna – Location of GPS/GLONASS
internal antenna.
• Modem antenna connector – Modem antenna
connector used for internal modem RF connection.
This is a BNC female connector for Pacific Crest
PDL (UHF) modems, or a TNC female connector for
spread spectrum and GSM modems.
Bottom Panel
• Receiver serial number
• Receiver part number
• Antenna Reference Point (ARP)
