Bluetooth Module Configuration
1-866-4TOPCON www.topconpositioning.com
2-45
Notice that the lower left corner shows a “Disconnected”
status for the computer and Bluetooth module.
For BTCONF version and copyright information, click the
About button.
4. From the drop-down list in the upper left corner, select the
computer serial port (usually COM1) used for
communication (Figure 2-41).

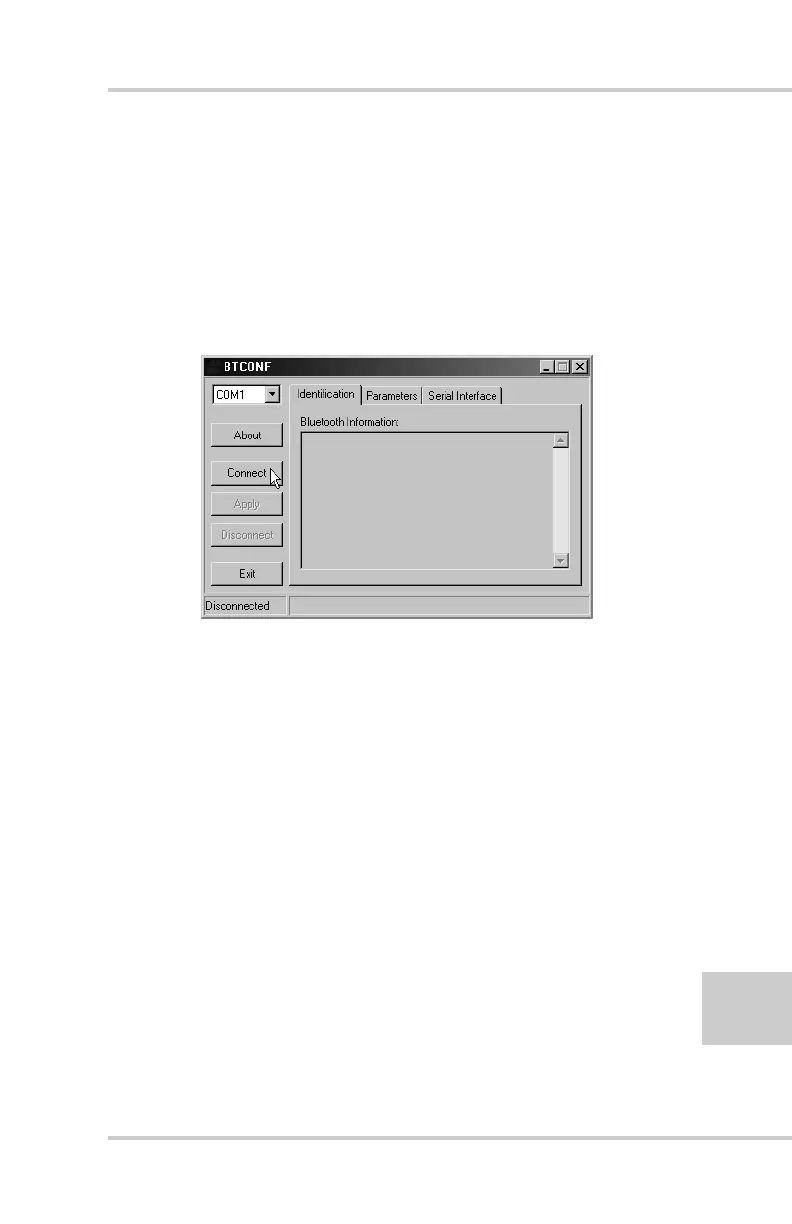

Figure 2-41. Select Communication Port and Click Connect
5. Click Connect to connect the computer and Bluetooth
module (Figure 2-41).
Once the receiver and computer connect through BTCONF,
the Identification tab (Figure 2-42 on page 2-46) displays the
following information:
• Bluetooth name – the name of the Bluetooth module, set
in the Parameters tab.
• Bluetooth address – the unique electronic address for
your Bluetooth module.
• Firmware version – the current firmware version of the
Bluetooth module.
