Connector Specifications
1-866-4TOPCON www.topconpositioning.com
B-13

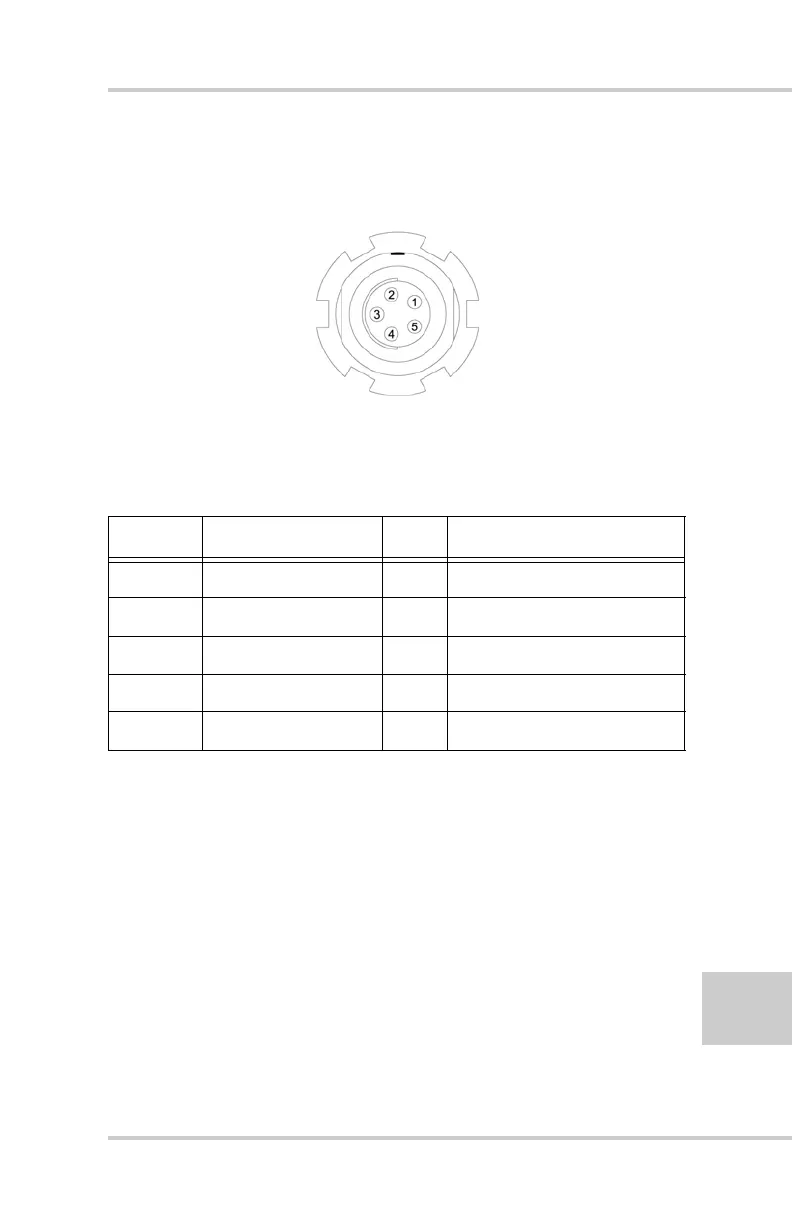

USB Connector
The USB connector is a sealed receptacle, 5 pin, ODU part
number G80F1C-T05QF00-0000 (Figure B-3).
Figure B-3. USB Connector
Table B-6 gives the USB connector specifications.
Table B-6. USB Connector Specifications
Number Signal Name Dir Details
1 Not used
2 USB_PWR P Bus power
3 GND - Ground
4USB D+ I/OData plus
5 USB D- I/O Data minus
