Configuration
Topcon HiPer+ Operator’s Manual
2-18
5. Select the Power output modes Ports drop-down list to
set power output on the serial ports (Figure 2-16).

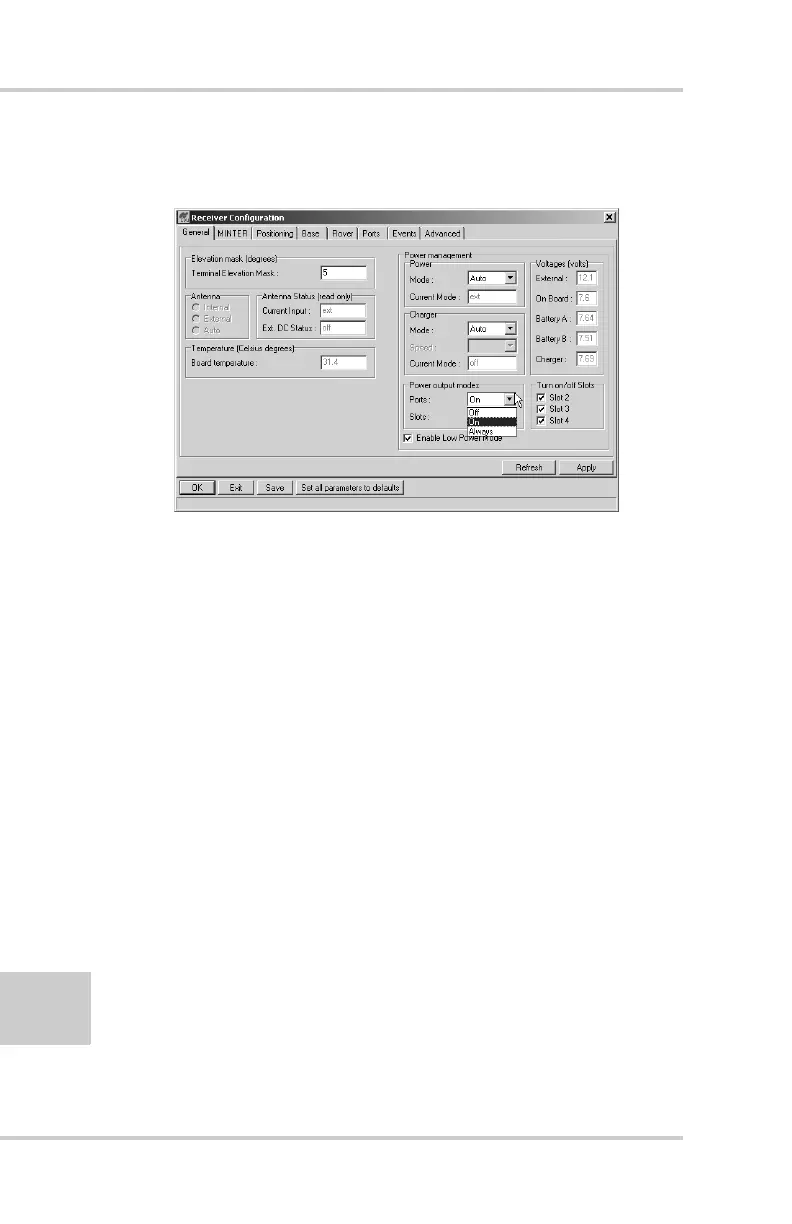

Figure 2-16. Select Power Output Modes – Ports
• On – the power board will deliver voltage on pin one of
all serial port connectors when the receiver is turned on.
If the receiver is turned off, there will not be any power
on the ports.
• Off – the power will be absent even if the receiver is
turned on.
• Always – the power board will deliver voltage on pin one
of all serial port connectors even if the receiver is turned
off.
