Connector Specifications
1-866-4TOPCON www.topconpositioning.com
B-11
Power Connector
The power connector (Figure B-1) is a sealed receptacle, 5
pin, ODU part number G80F1C-T05QF00-0000.

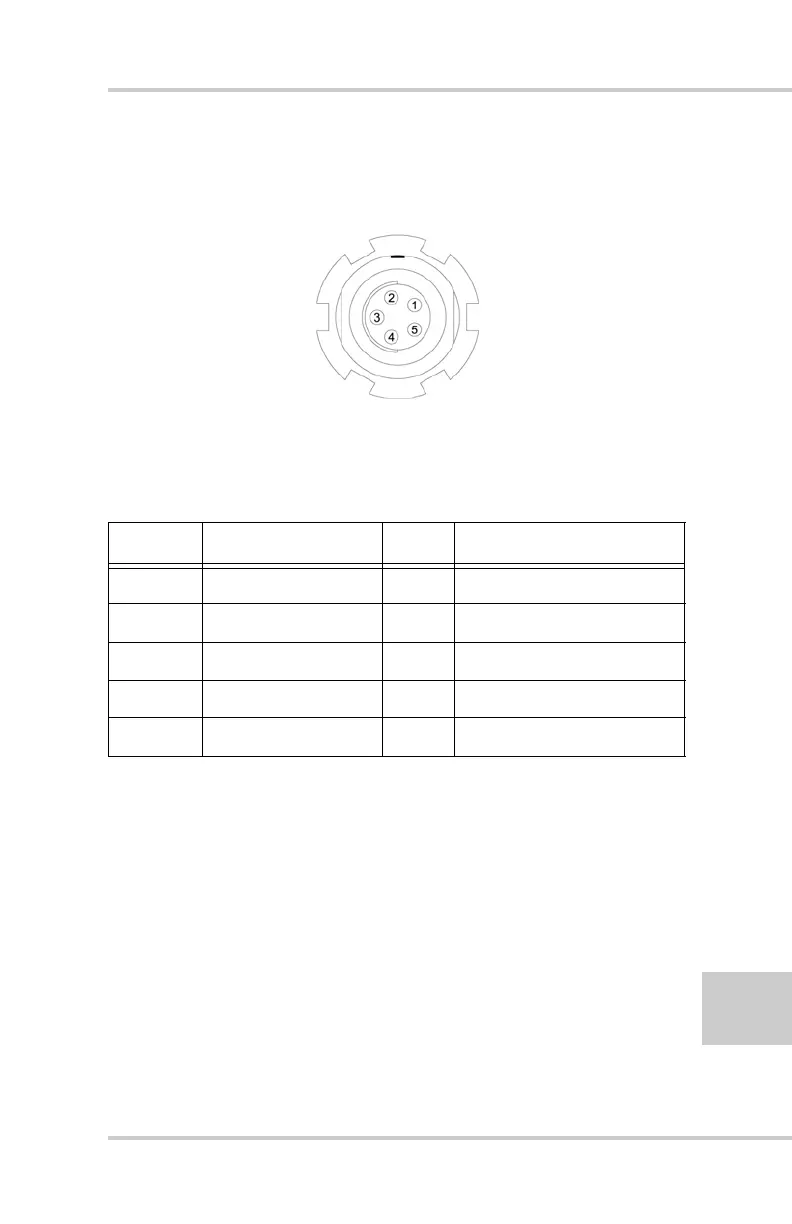

Figure B-1. Power Connector
Table B-4 gives power connector specifications.
Table B-4. Power Connector Specifications
Number Signal Name Dir Details
1 Power_INP P 6 to 28 volts DC input
2 Power_INP P 6 to 28 volts DC input
3 Power_GND P Ground, power return
4 Power_GND P Ground, power return
5 Not used
