Specifications
Topcon HiPer+ Operator’s Manual
B-12
Serial C-RS232 Connector
For ports A and D. The RS232 connectors (Figure B-2) are
sealed receptacle, 7 pin, ODU part number G80F1C-
T07QC00-0000.

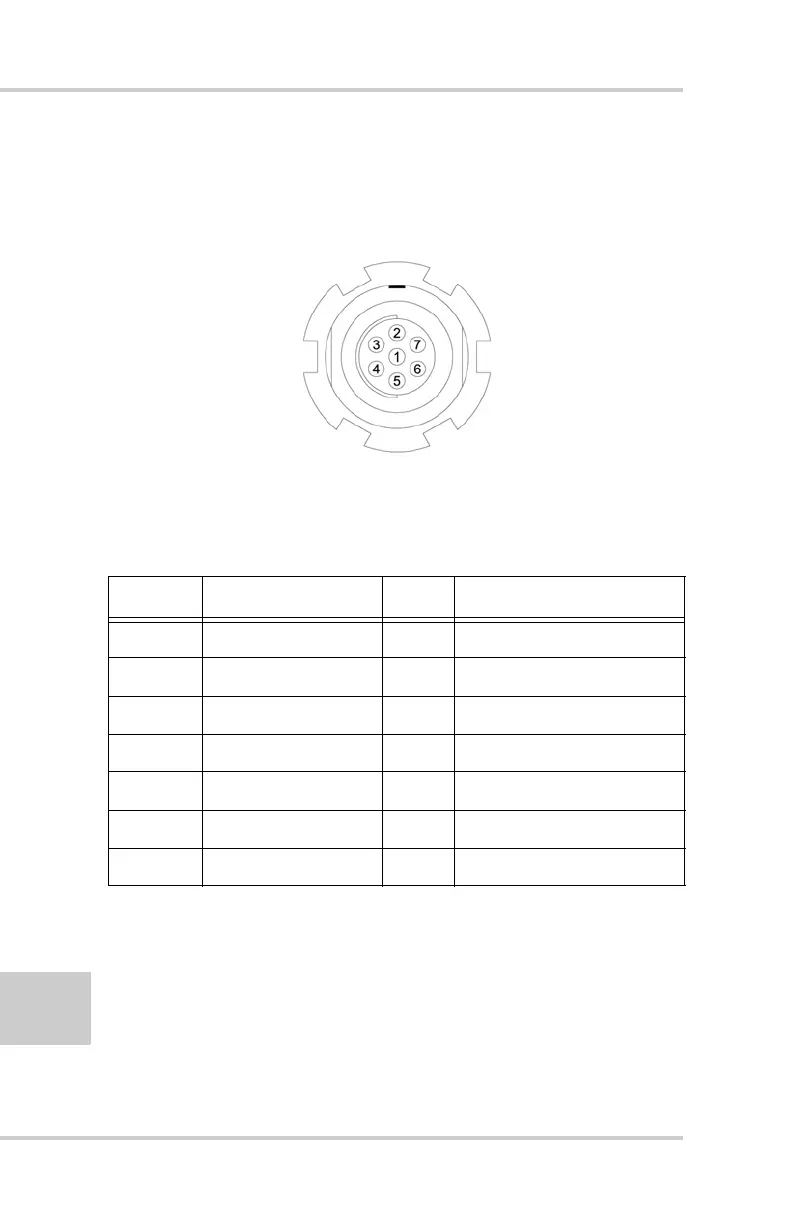

Figure B-2. RS232 Connector
Table B-5 gives the RS232 cable connector specifications.
Table B-5. RS232 Connector Specifications
Number Signal Name Dir Details
1 Power_OUT P Power Output (I<0.2 A)
2 GND - Signal ground
3 CTS I Clear to send
4RTS ORequest to send
5 RXD I Receive data
6 TXD O Transmit data
7 Not used
