HiPer+ Configuration
1-866-4TOPCON www.topconpositioning.com
2-19
6. Select the Power output modes Slots drop-down list to
set power output on internal slots (Figure 2-17).

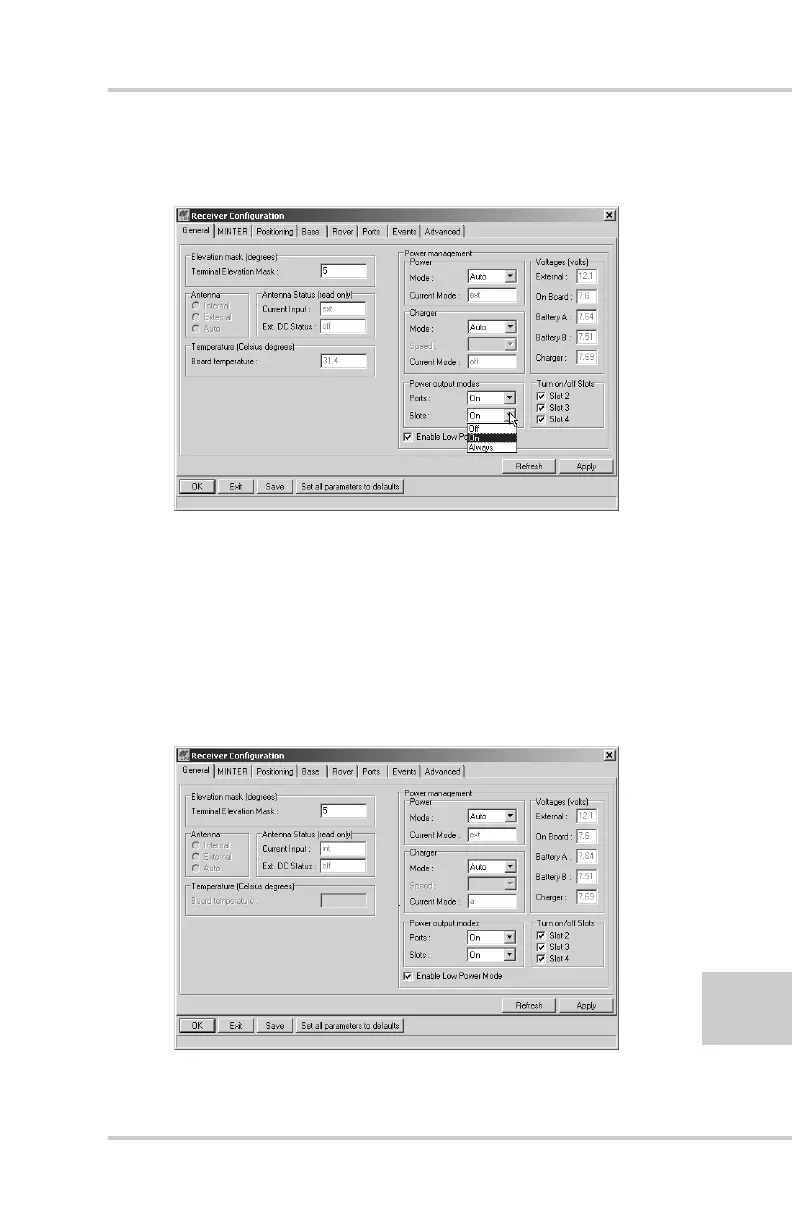

Figure 2-17. Select Power Output Modes – Slots
• On – all slots are powered if the receiver is turned on.
• Off – internal slots will not be powered even if the
receiver is turned on.
• Always – internal slots will be powered even if the
receiver is turned off.
7. View the Voltages information (Figure 2-18).
Figure 2-18. View Voltages Information
