PROCEDURE
1 Do a check of the pre-tension of the foundation bolts, refer to section 4.4 Do a check of
the pre-tension.
NOTE: In the area of the thrust bearing, the bedplate (003, Figure 6-1) and the
foundation must be attached with the foundation bolts (002) and the long
bushes (001).
The remaining area is attached with the foundation bolts (002) and the short
bushes (004).

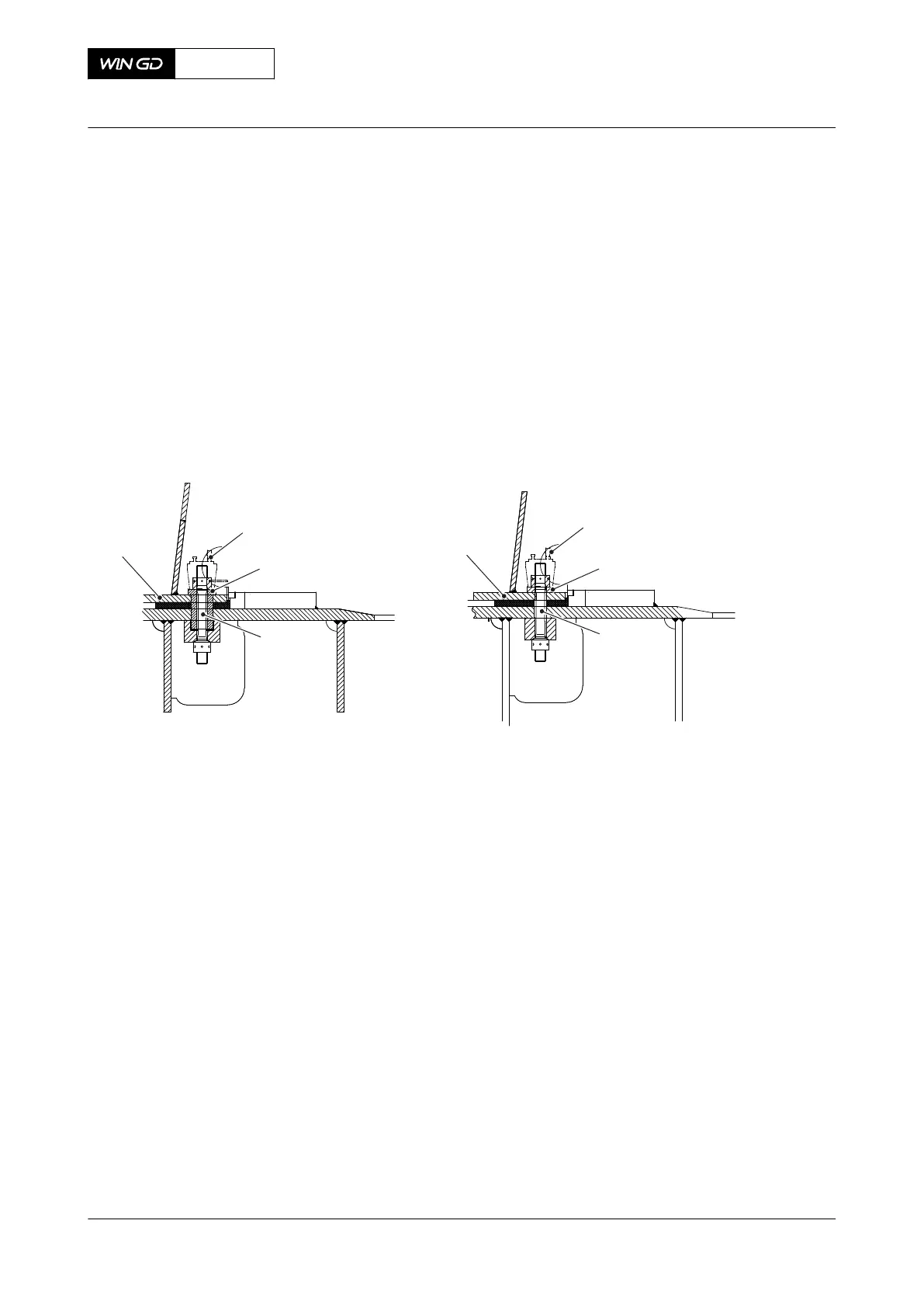

Fig 6-1 Foundation bolts
003
94145
001
002
002
004
003
94145
CLOSE UP
• None
X72DF
AA00-1115-00AAA-360A-A
Maintenance Manual Bedplate - do a check of the foundation bolts
Winterthur Gas & Diesel Ltd.
- 103 - Issue 002 2020-10
