13 Install the leakage pipes (002 and 003, Figure 10-34) to the flow limiting valve (004).

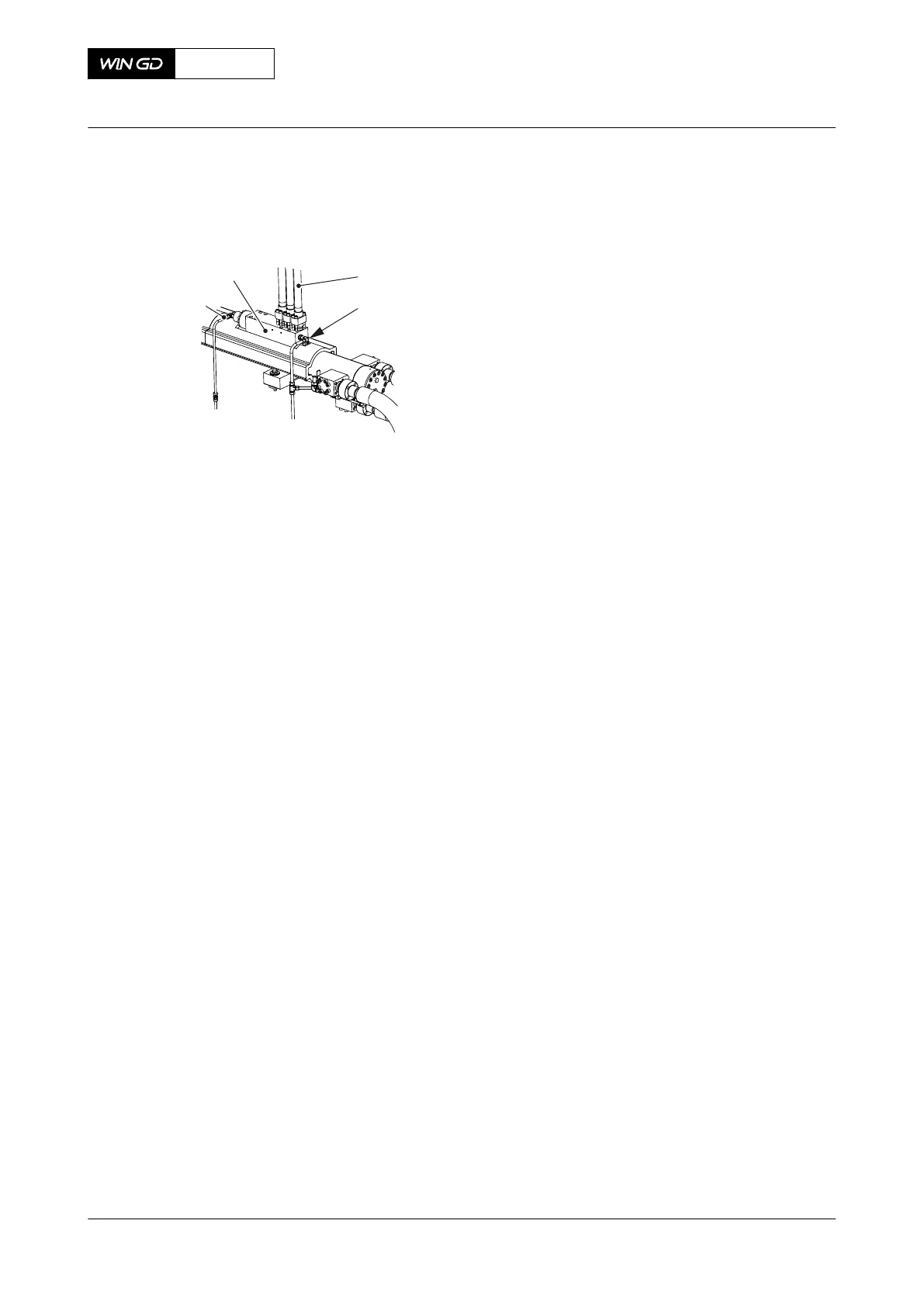

Fig 10-34 Flow limiting valve and fuel rail
WCH03227
001
004
Note: Some parts can look different.
002
00505
003
14 Install the HP fuel pipes (001), refer to section 13.3.4 HP fuel pipe (fuel rail to injection
valve) - install.
15 Operate the engine for a minimum of one hour with marine diesel oil.
CLOSE UP
• None
X72DF
AA00-5565-00AAA-720A-A
Maintenance Manual Flow limiting valve - install
Winterthur Gas & Diesel Ltd.
- 611 - Issue 002 2020-10
