3.4.7 Connecting rod - top and bottom end bearings

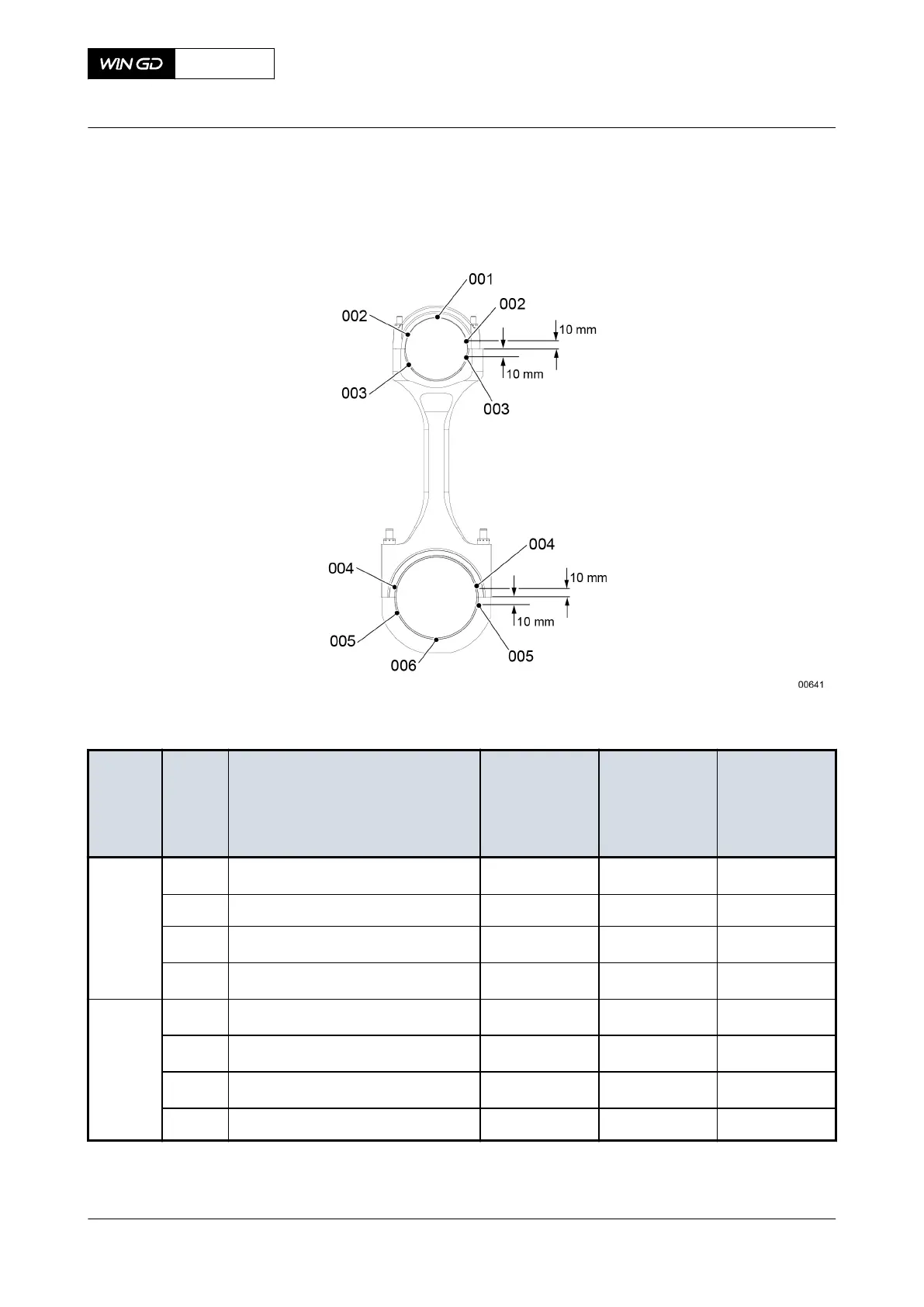

Fig 3-9 Connecting rod - top and bottom end bearings
Tab 3-9 Connecting rod - top and bottom end bearings
Location
code
Key Item Measured di-
rection
Nominal di-
mension (usu-
al, new) [mm]
Maximum
clearance di-
mension (be-
cause of wear)
[mm]
3303,
3326
Top end bearing
001 Bearing clearance Vertical 0.40 to 0.65 0.80
*002 Lateral clearance Total 0.40 to 0.65
*003 Lateral clearance Total 0.30 to 0.60
3303 Bottom end bearing
004 Bearing clearance Vertical 0.40 to 0.65
0.85
*005 Lateral clearance Total 0.50 to 0.70
*006 Lateral clearance Total 0.50 to 0.70
NOTE: * = Measure the lateral clearances at the locations shown.
X62DF
AA00-0000-00AAA-034C-A
Maintenance Manual Clearances
