section 6.4.3 Thrust bearing - do a check of the axial clearance with a inside
micrometer.
NOTE: When you replace new thrust pads (or thrust pads that have new metal), you
must make sure that the dimensions are the same as the adjacent pad(s).
17 Adjust the clearances to the original values, refer to section 3.3 Clearances - general.
18 Do a visual examination of the thrust bearing housing, refer to 6.4.1 Thrust bearing -
examine the housing.
19 For the configuration of the thrust pads, refer to Figure 6-22.

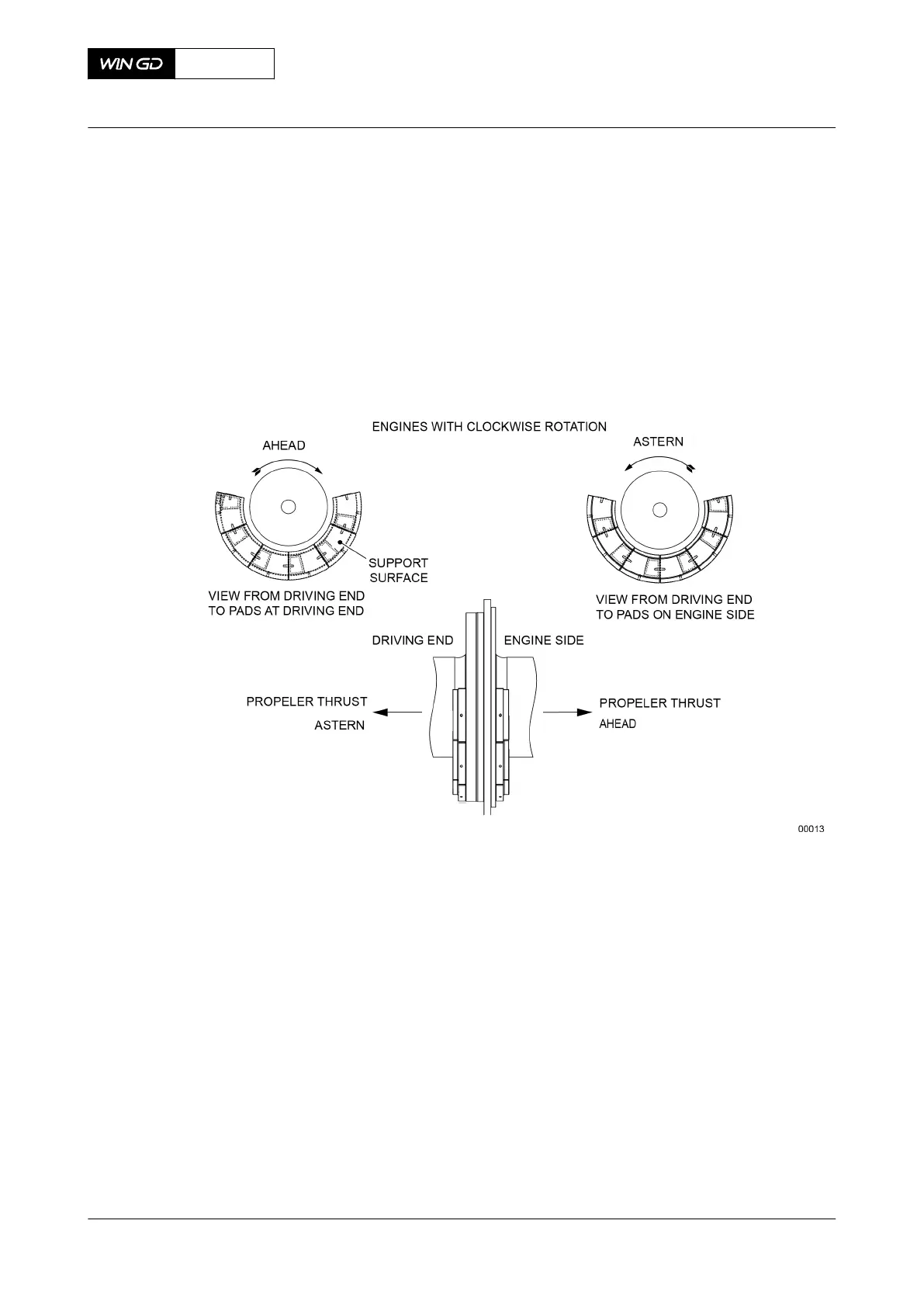

Fig 6-22 Thrust pads - configuration
20 Attach the cover (001, Figure 6-23) to the engine.
X62DF
AA00-1203-00AAA-720A-A
Maintenance Manual Thrust bearing - install the pads
Winterthur Gas & Diesel Ltd.
- 149 - Issue 002 2020-10
