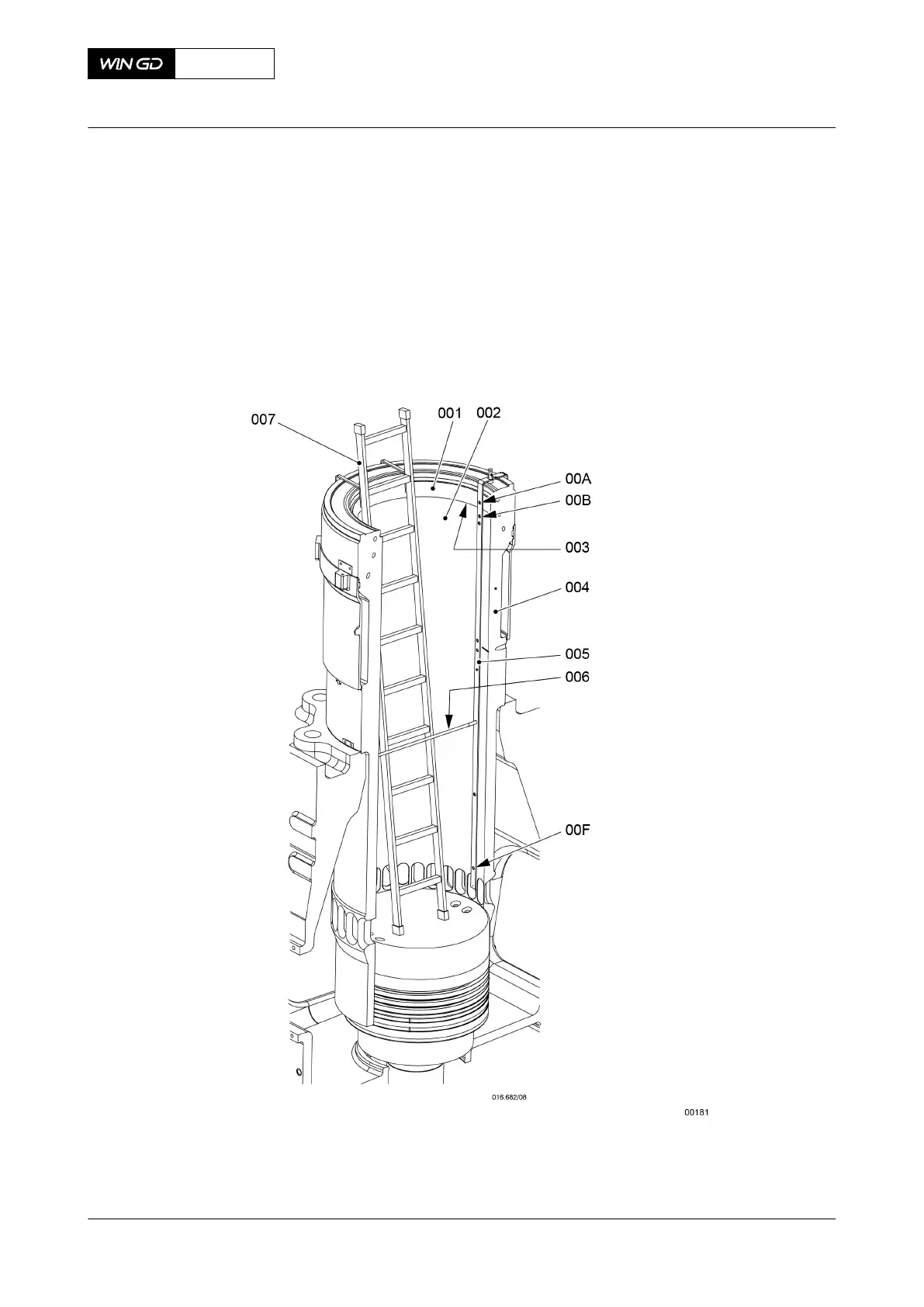

Fig 7-1
Cylinder liner - dimension check
4
Clean the area (001) above the running surface (002).
5
Remove the bottom part of the measuring gauge (005).
X72DF
AA00-2124-00AAA-360A-A
Maintenance Manual
Cylinder liner - do a check of the bore
Winterthur Gas & Diesel Ltd.
- 169 -
Issue 002 2020-10
