WinGD X62DF - Piston Rod Gland - Attach (Example)

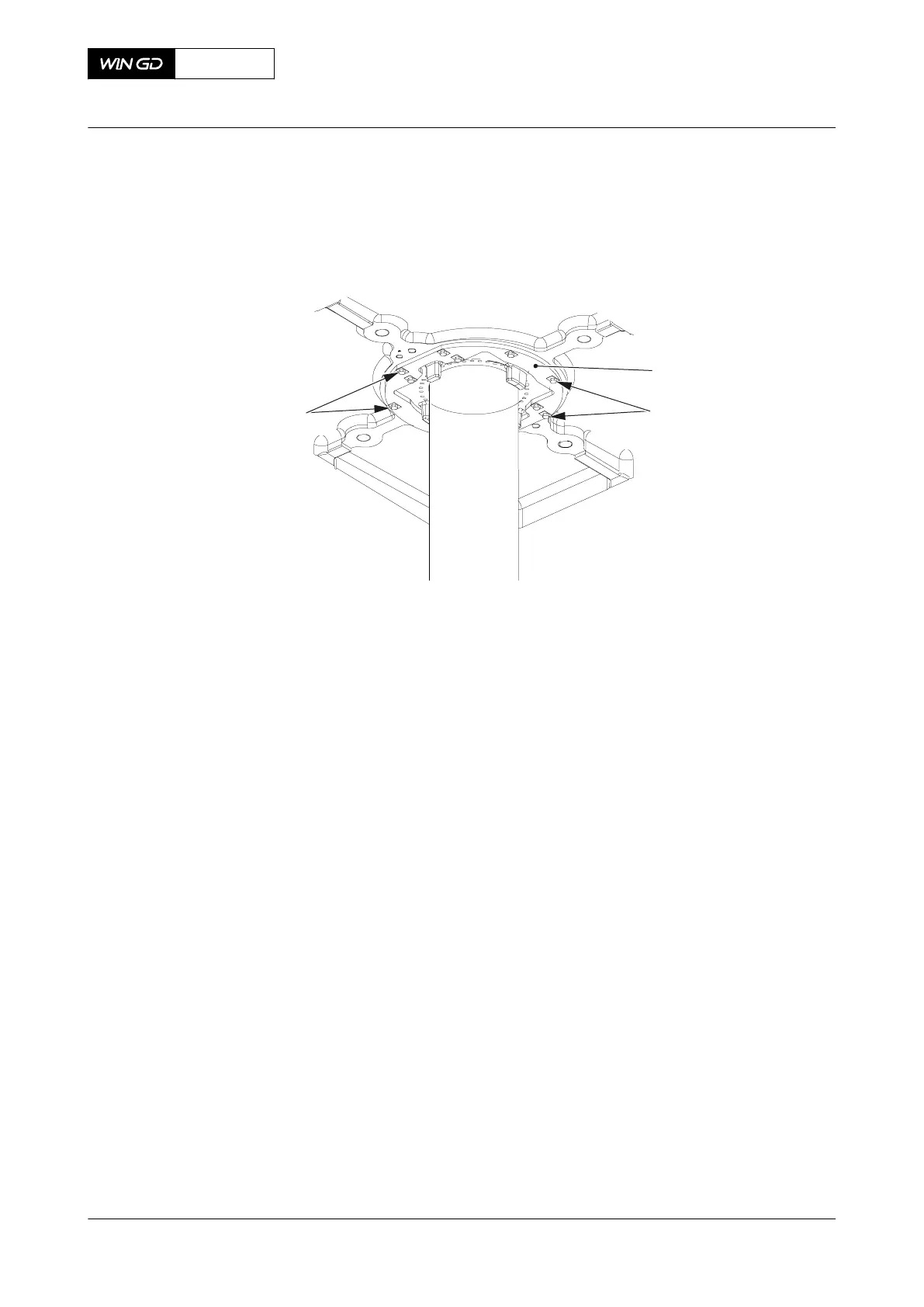

Fig 8-78 Piston rod gland - attach (example)
00699
001
002
002
27 Remove the distance holders (003, Figure 8-79).
28 Attach the round nuts (001) to the elastic bolts, refer to section 4.2 Tighten a round nut
with a pre-tensioner.
29 Use the engine room crane to remove the installation tool from the cylinder liner.
30 Make sure that the cylinder liner and the antipolishing ring (006) are clean and in a
satisfactory condition.
31 Put oil on the surfaces of the antipolishing ring (006).
32 Attach the four lifting plates (005) to the antipolishing ring (006) with the four screws
(007).
33 Attach the lifting tool (004) to the lifting plates (005) an the engine room crane.
34 Operate the engine room crane to put the antipolishing ring (006) into the cylinder liner.
35 Remove the lifting tool (004).
X62DF
AA00-3403-00AAA-720A-A
Maintenance Manual Piston - install
Winterthur Gas & Diesel Ltd.
- 501 - Issue 002 2020-10
