3 Follow up the fixed (rear) side and the expansion (front) side.
3.1 Put new O-rings (011, Figure 11-20) in position.
3.2 Put the collars (011) in position.
3.3 Attach the flanges (008) and the clamps (009).

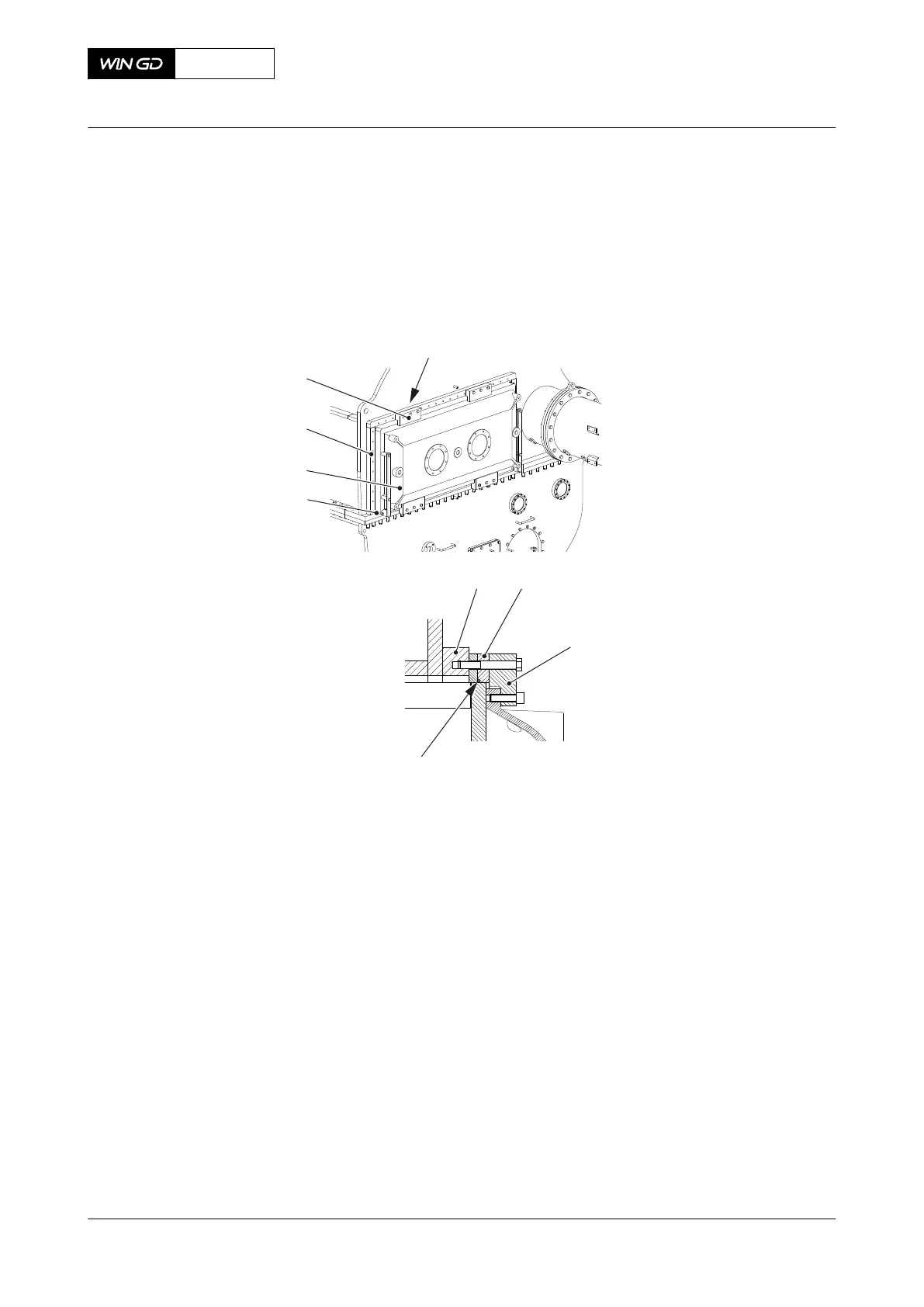

Fig 11-20 Scavenge air cooler (example) - follow up front and rear side
II
004
002
008
009
009
008 010
011
II
4 Follow up the scavenge air cooler (SAC).
4.1 Install the removed pipes.
4.2 Open the shut-off valves of the cooling water pipes.
4.3 Prepare the cooling water system for operation, refer to the Operation Manual.
CLOSE UP
• None
X62DF
AA00-6606-00AAA-720A-A
Maintenance Manual Scavenge air cooler - install
Winterthur Gas & Diesel Ltd.
- 657 - Issue 002 2020-10
