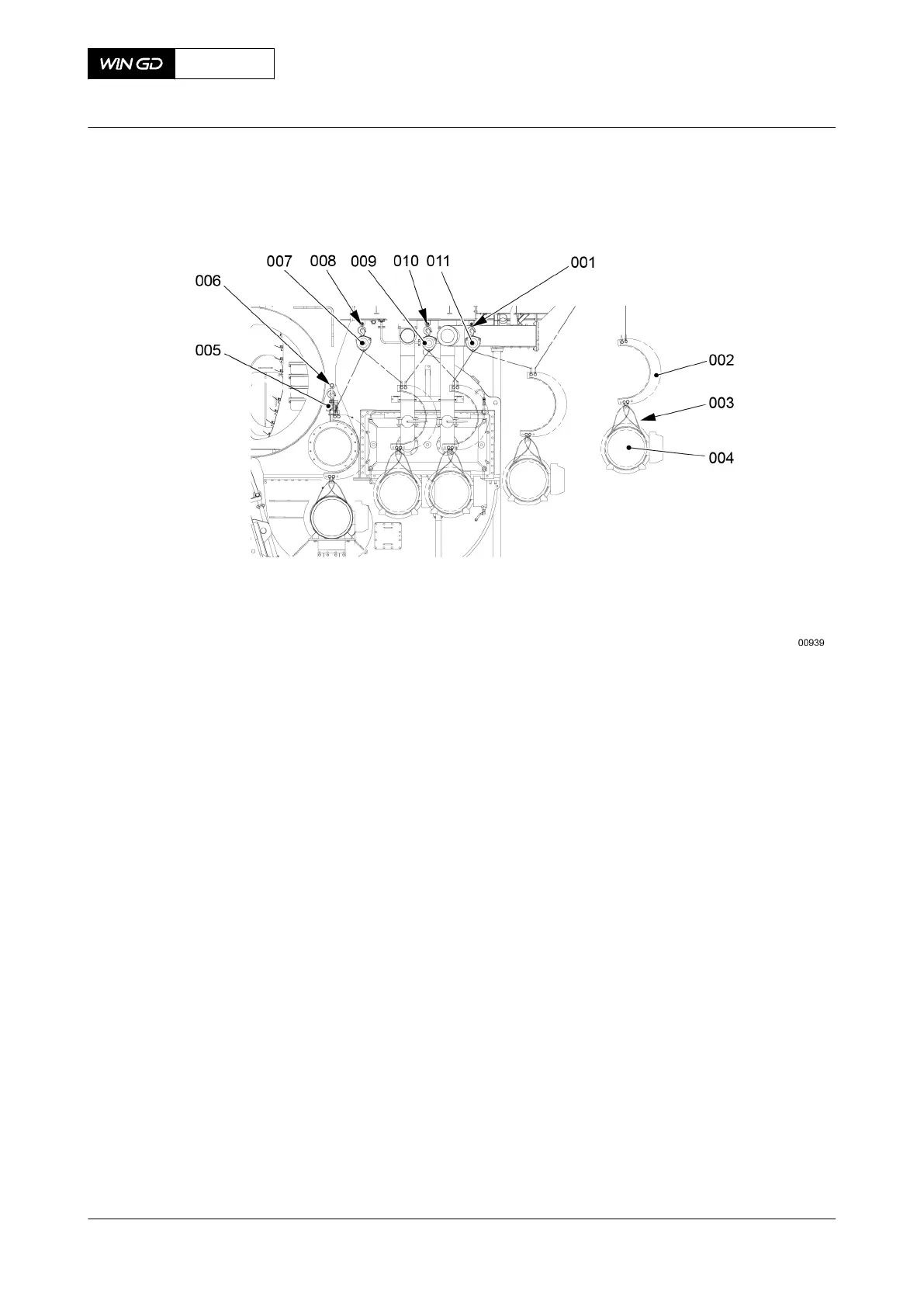

Fig 11-10 Auxiliary blower - move
1.20 Make sure that the shackle (003, Figure 11-11) is attached to the strut (002).
1.21 Attach the spur-geared chain block (004) to the shackle (003) and the lifting tool
(009).
1.22 Operate the chain blocks (004, 009) to hold the weight of the electric motor.
1.23 Remove the chain block (001).
1.24 Operate the chain blocks (004, 009) to move the electric motor into the casing.
1.25 Attach the electric motor to the flange (005) with the screws.
1.26 Attach the electric motor to the support (006) with the eight applicable bolts.
1.27 Torque the applicable eight bolts.
1.28 Connect the electrical connection to the electric motor.
X62DF
AA00-6545-00AAA-720A-A
Maintenance Manual Auxiliary blower - install
Winterthur Gas & Diesel Ltd.
- 642 - Issue 002 2020-10
