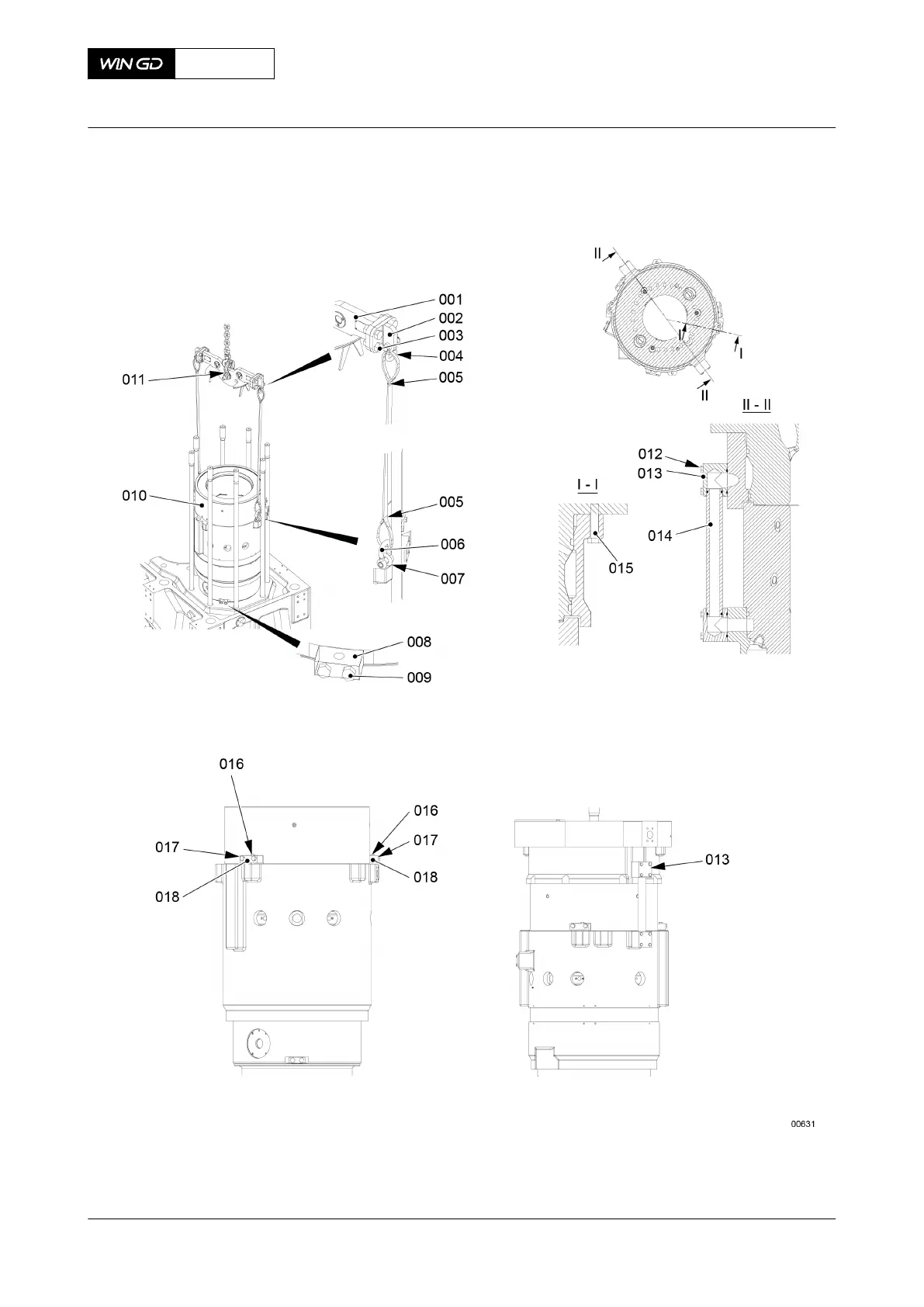

Fig 7-2 Water guide jacket
2 Remove the pipes to the lubricating quills as follows
2.1 Remove the applicable pipe holders.
2.2 Disconnect the related pipes.
X62DF
AA00-2124-00AAA-520A-A
Maintenance Manual Cylinder liner - remove
Winterthur Gas & Diesel Ltd.
- 174 - Issue 002 2020-10
