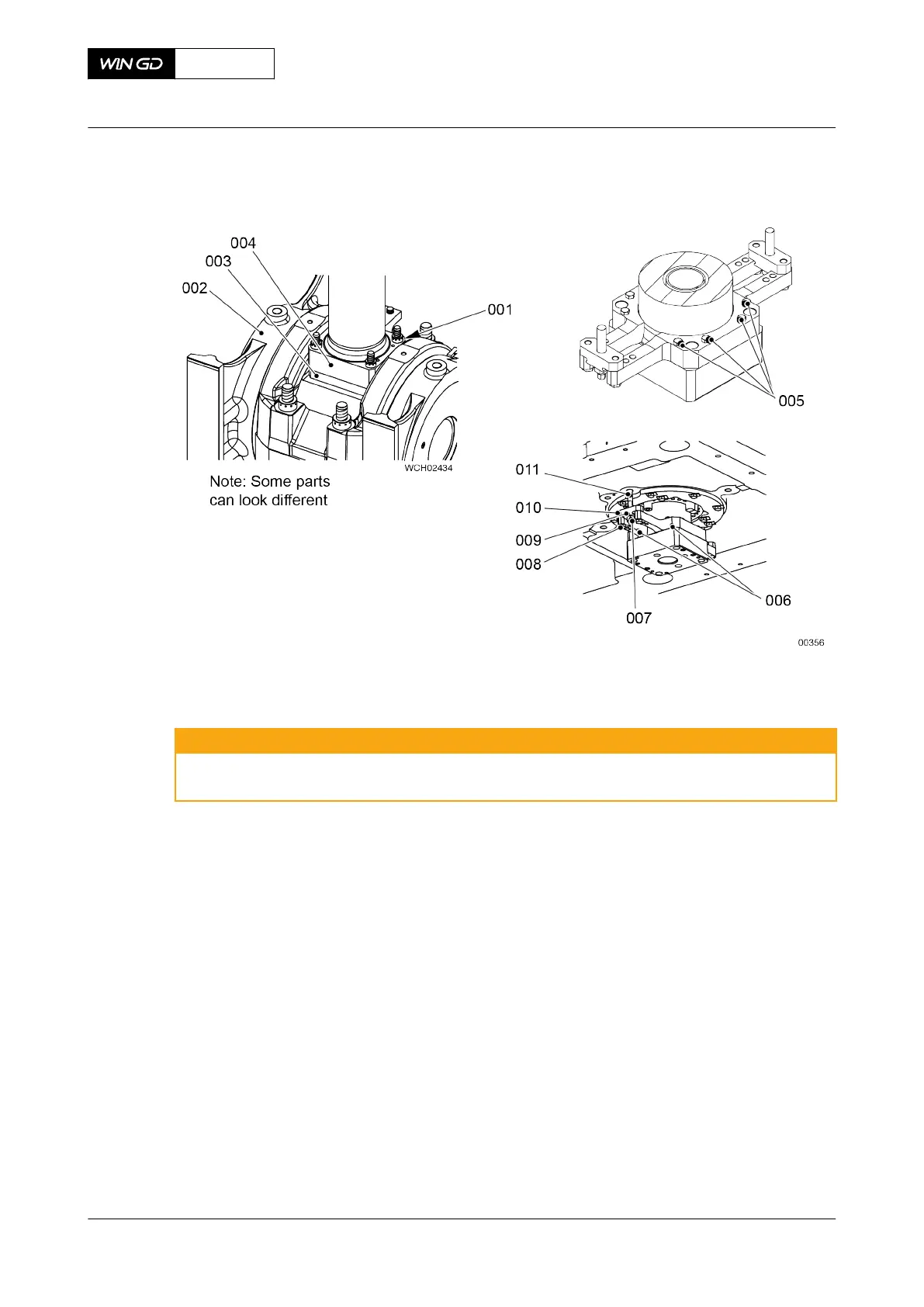

Fig 8-46 Piston - attach
33 Make sure that the compression shim (003) is clean and has no damage.
34 Unlock the turning gear.
WARNING
Before you operate the turning gear, make sure that no personnel are near the flywheel
or in the engine.
35 Operate the turning gear to move the crank to TDC. Make sure that the crosshead
touches the piston rod foot.
36 Loosen the two nuts (007).
37 Remove the two bolts (011) from the cylinder jacket.
38 Remove the four bolts (008), then remove the holders (010) from the plates (006).
39 Remove the eight bolts (005), then remove the plates (006).
40 Tighten the round nuts (001) to the correct value, refer to section 16.1 Tightening
instructions.
CLOSE UP
• None
X62DF
AA00-3303-00AAA-720A-A
Maintenance Manual Connecting rod - install
Winterthur Gas & Diesel Ltd.
- 442 - Issue 002 2020-10
