WinGD X62DF - Top End Bearing - Move

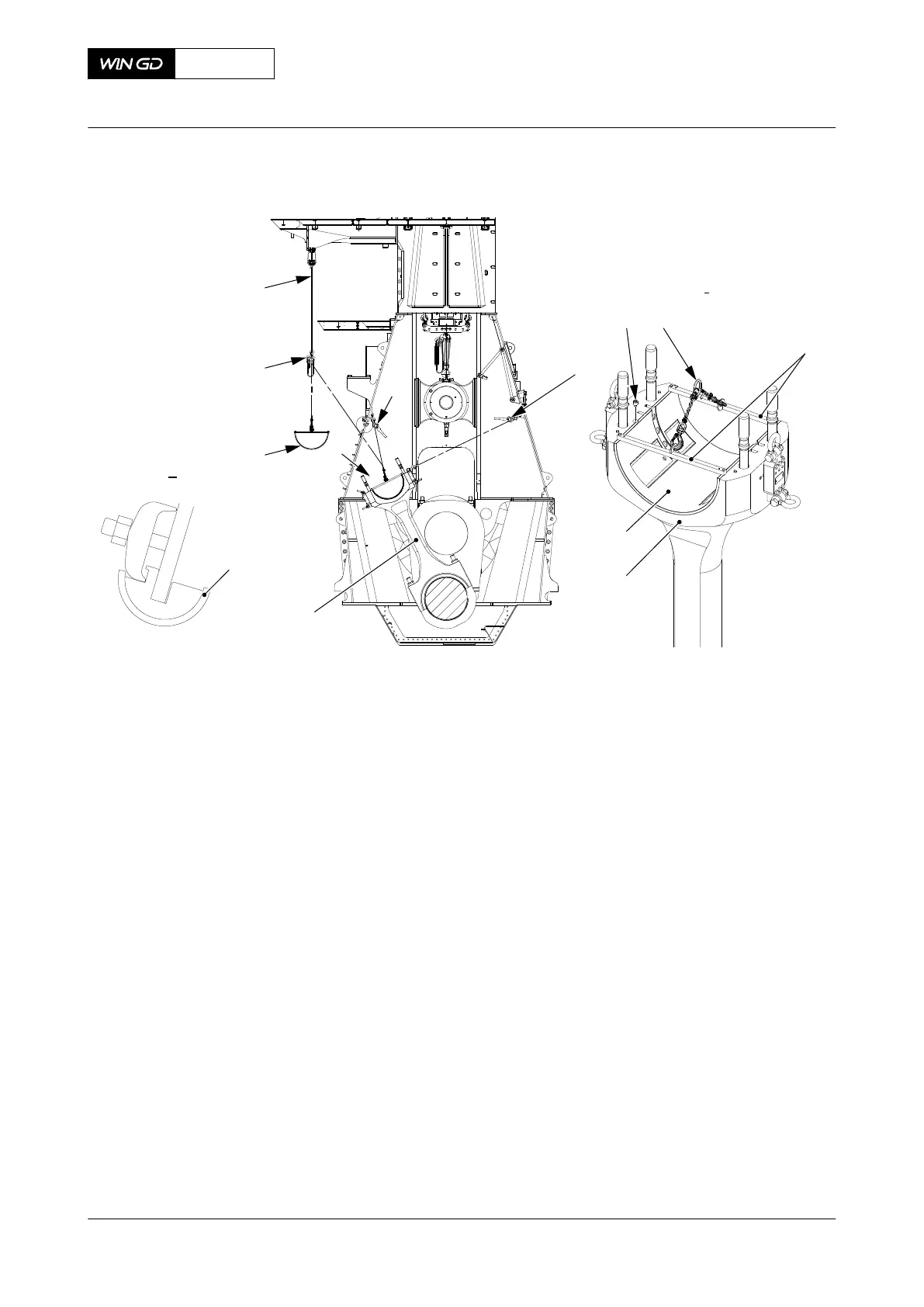

Fig 8-36 Top end bearing - move
I
II
II
I
002
003
004
001
005
006
007
003
004
008
009 010
00766
18 Operate the lever chain hoists (003 and 007, Figure 8-37) to move the connecting rod to
the vertical position.
19 Make sure that the platform (006) is installed.
20 Operate the chain blocks (008, 009) to lift the crosshead (002) a small distance.
21 Remove the two supports (004).
22 Operate the chain blocks (008, 009) to lower the crosshead into position on the
connecting rod.
23 Attach the toggle lever (001) to the connection piece on the crosshead (002).
X62DF
AA00-3303-02AAA-720A-A
Maintenance Manual Connecting rod - install the top end bearing
Winterthur Gas & Diesel Ltd.
- 422 - Issue 002 2020-10
