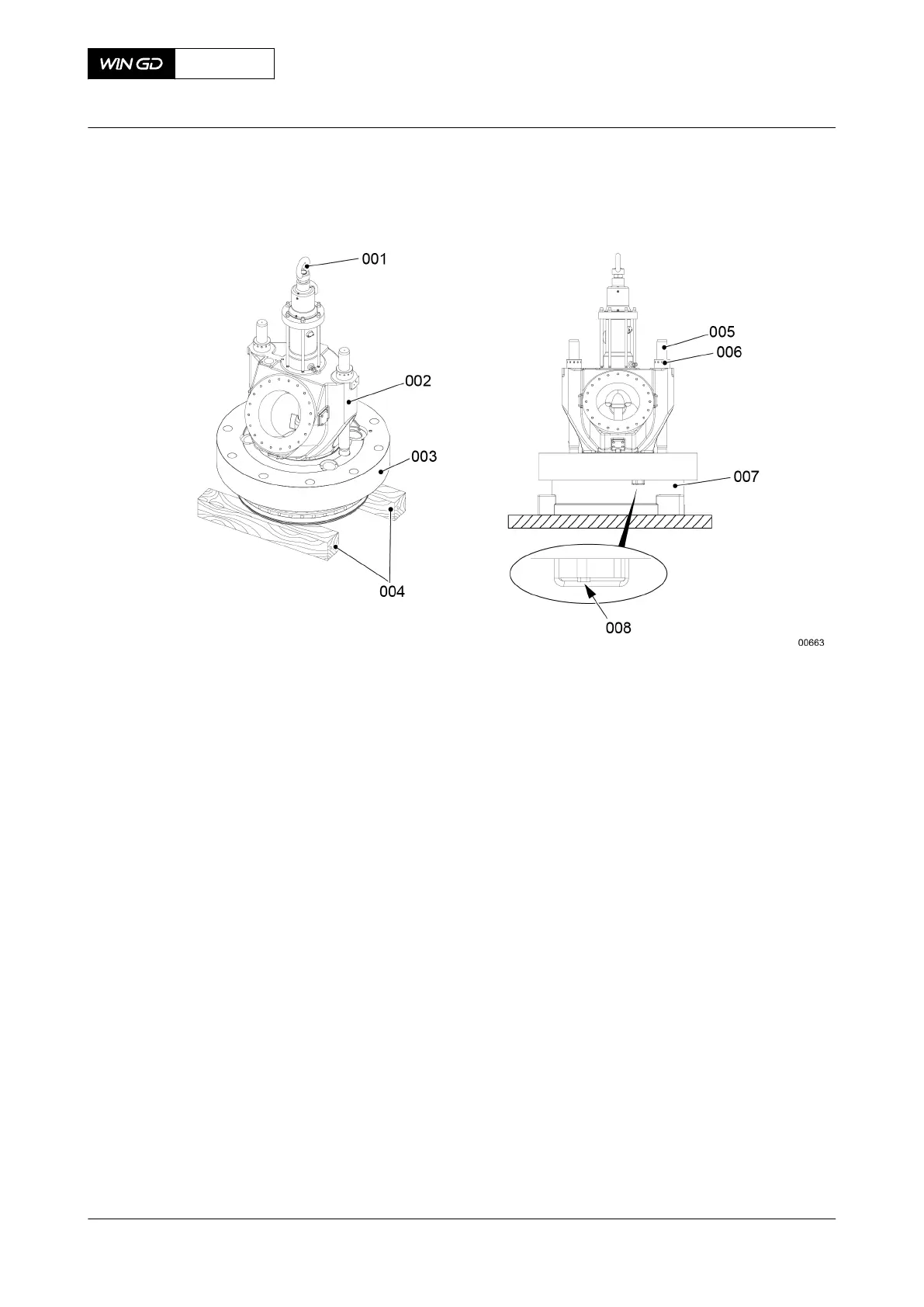

Fig 7-34 Cylinder cover, exhaust valve cage and water guide jacket (example)
28 Attach the engine room crane to the lifting tool (002, Figure 7-35).
29 Operate the engine room crane to lift the lifting tool (002).
30 Lower the lifting tool (002) on to the elastic studs (001).
31 Attach the lifting tool (002) to the elastic studs (001) with the round nuts (005).
32 Operate the engine room crane to lift and move the cylinder cover (003) to an applicable
area.
33 Lower the cylinder cover (003) on to an applicable support (006).
X72DF
AA00-2708-00AAA-520A-A
Maintenance Manual Cylinder cover - remove
Winterthur Gas & Diesel Ltd.
- 238 - Issue 002 2020-10
