5 Lift the bearing shell.
5.1 Attach the lifting tool (002, Figure 6-12) to the bearing shell (003).
5.2 Turn the bearing shell (003) sufficiently to attach the chain block (001).
5.3 Attach the chain block (001) to the lifting tool (002).
5.4 Operate the chain block (001) to lift the bearing shell (003) a small distance.
5.5 Attach the engine room crane to the lifting tool (002).
5.6 Operate the engine room crane and the chain block (001) to lift and move the
bearing shell (003) out of the engine.
5.7 Remove the chain block (001).
5.8 Operate the engine room crane to move the bearing shell (003) to an applicable
area.

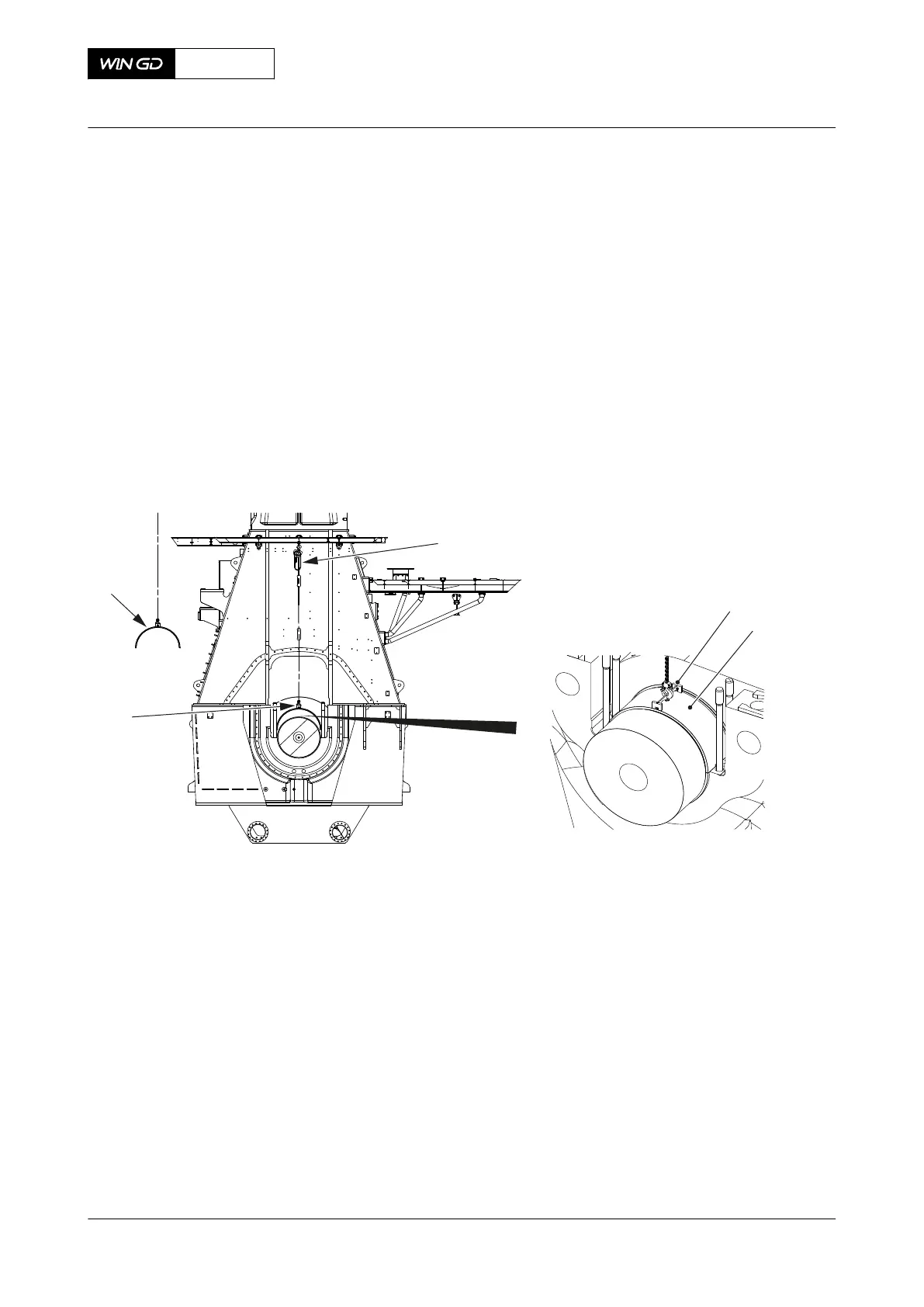

Fig 6-12 Bearing shell - lift
001
002
003
003
002
CLOSE UP
None
X72DF
AA00-1134-00AAA-520A-A
Maintenance Manual Main bearing shell - remove
Winterthur Gas & Diesel Ltd.
- 121 - Issue 002 2020-10
