3.4 Clearances
3.4.1 Crankshaft and thrust bearing

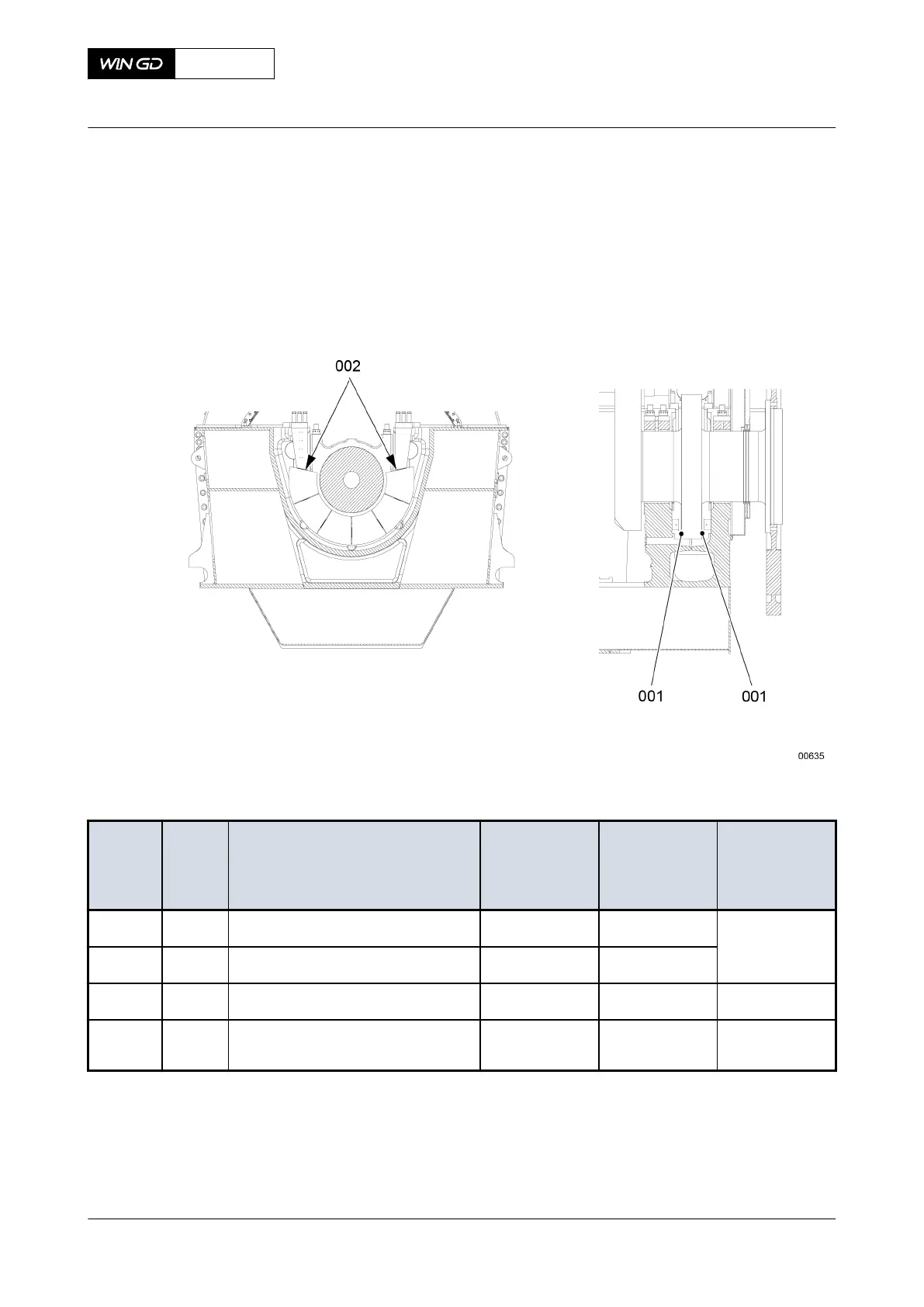

Fig 3-3 Crankshaft and Thrust Bearing
Tab 3-3 Crankshaft and thrust bearing - clearances
Location
code
Key Item Measured
direction
Nominal
dimension
(usual, new)
[mm]
Maximum
dimension (be-
cause of wear)
[mm]
1203 Thrust bearing
1224
Thrust bearing pad Thickness
100
-0.5
-0.6
001 Thrust bearing clearance Axial (total) 0.4 to 0.65 1.0
002 Clearance between thrust pad and
bracket
Each side 3.0
