WinGD X62DF User Manual

PROCEDURE
1 Remove the screws (010, Figure 11-4) and the tab washers (011).
2 Remove the two flat bars (002, 003) and the stop plate (009).
3 Remove the screw (008) and the tab washer (007).
4 Remove the guide (006), distance ring (005), shaft (004), and the flap (001).

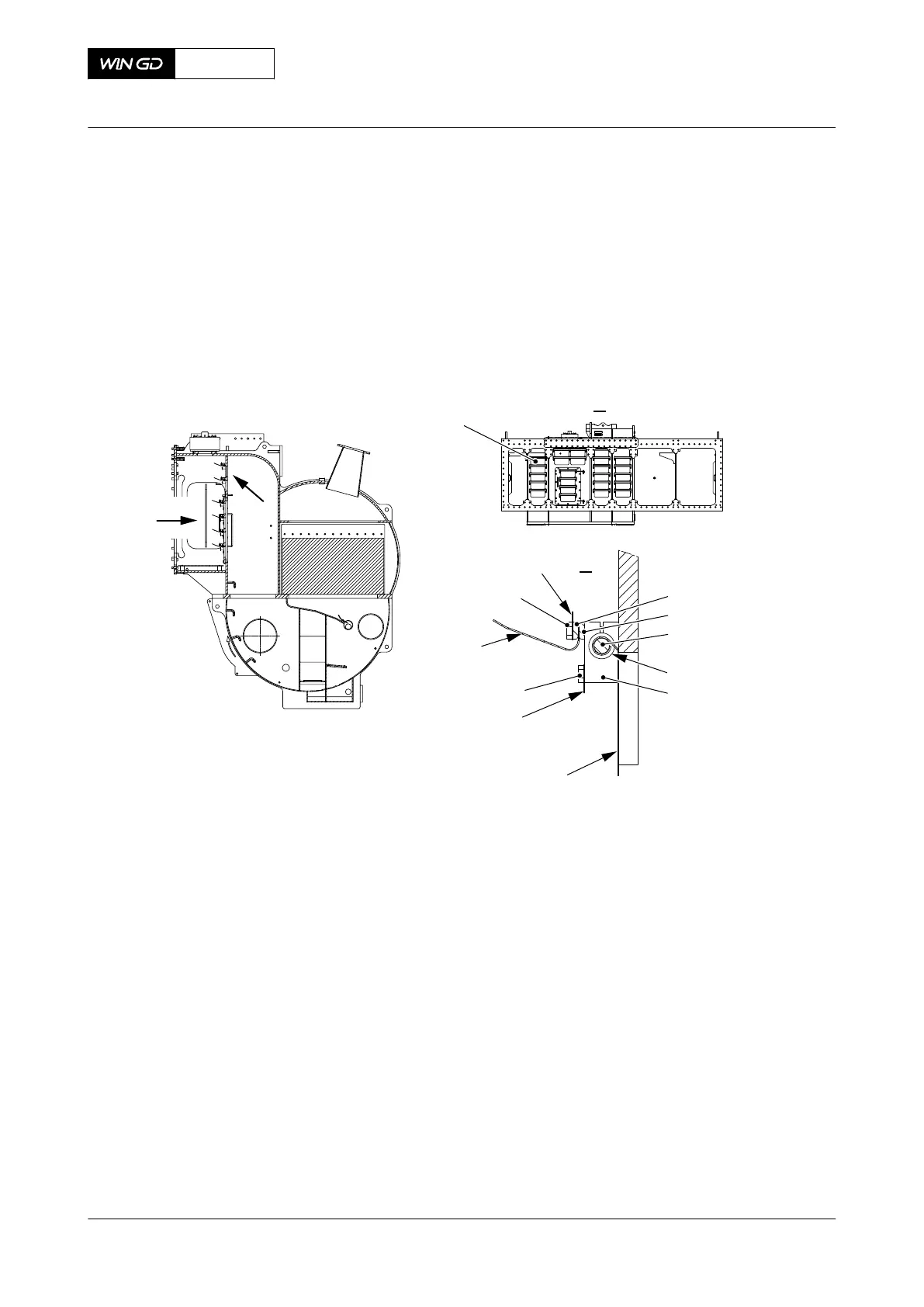

Fig 11-4 Flaps - remove
I
00536
001
I
II
II
001
003
005
008
009
011
002
010
007
004
006
CLOSE UP
• None
X72DF
AA00-6420-00AAA-520A-A
Maintenance Manual Scavenge air receiver - remove the flaps
Winterthur Gas & Diesel Ltd.
- 631 - Issue 002 2020-10
