WinGD X62DF - Bearing Shell - Remove

4 Remove the bearing shell.
4.1 Attach the shackle (004, Figure 6-11) to the position shown.
4.2 Attach the chain block (003) to the shackle (004).
4.3 Remove the Allen screws (007) from the top of the bearing shell (002).
4.4 Attach the turning out device (009) to the bearing shell (002).
4.5 Put the wire ropes (006) around the edges of the main bearing shell (002).
4.6 Attach the wire ropes to the lifting plate (008).
4.7 Attach the chain block (003) to the middle hole in the lifting plate (008).
4.8 Operate the chain block (003) to turn the bearing shell (002) a sufficient distance
to attach the lifting tool.
4.9 Remove the chain block (003) from the lifting plate (008).
4.10 Remove the turning out device (009) and the lifting plate (008).

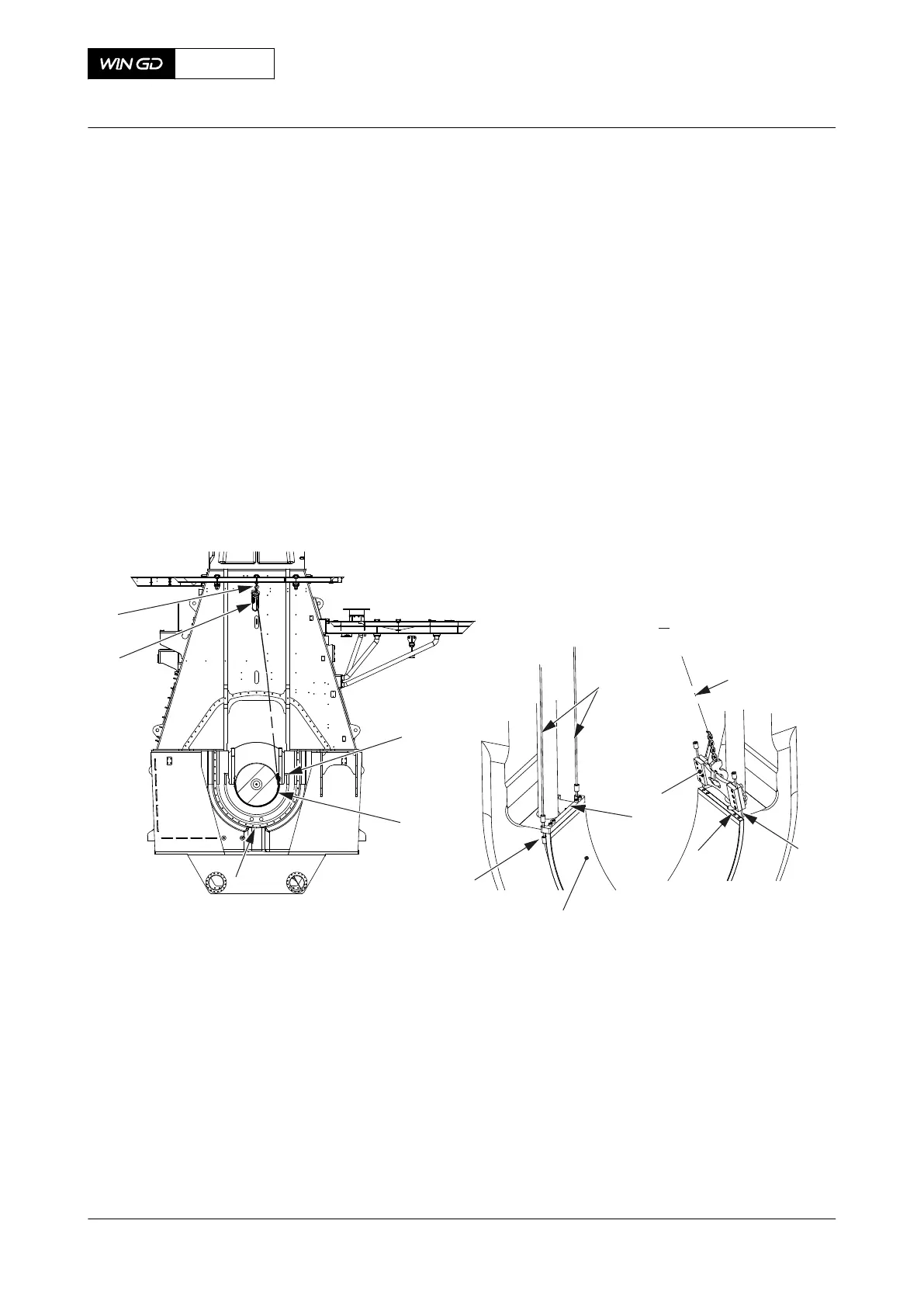

Fig 6-11 Bearing shell - remove
