WinGD X62DF - Pressure Control Valve - Install

PROCEDURE
1 Remove the protection from the valve block (003, Figure 10-25).
2 Do a check of the lip seal (002). If necessary replace the lip seal.
3 Make sure that the sealing surfaces of the PCV (001) and of the valve block (003) are
clean and have no damage.
4 Put the PCV (001) in position of the valve block (003).
5 Apply Never-Seez NSBT-8 to the screw threads (008).
6 Put the screws (008) in position in the PCV (001).
7 Torque the screws (008), refer to section 16.1 Tightening instructions.
8 Tighten the angle union (006).
9 Connect the electrical connection to the solenoid valve (009).

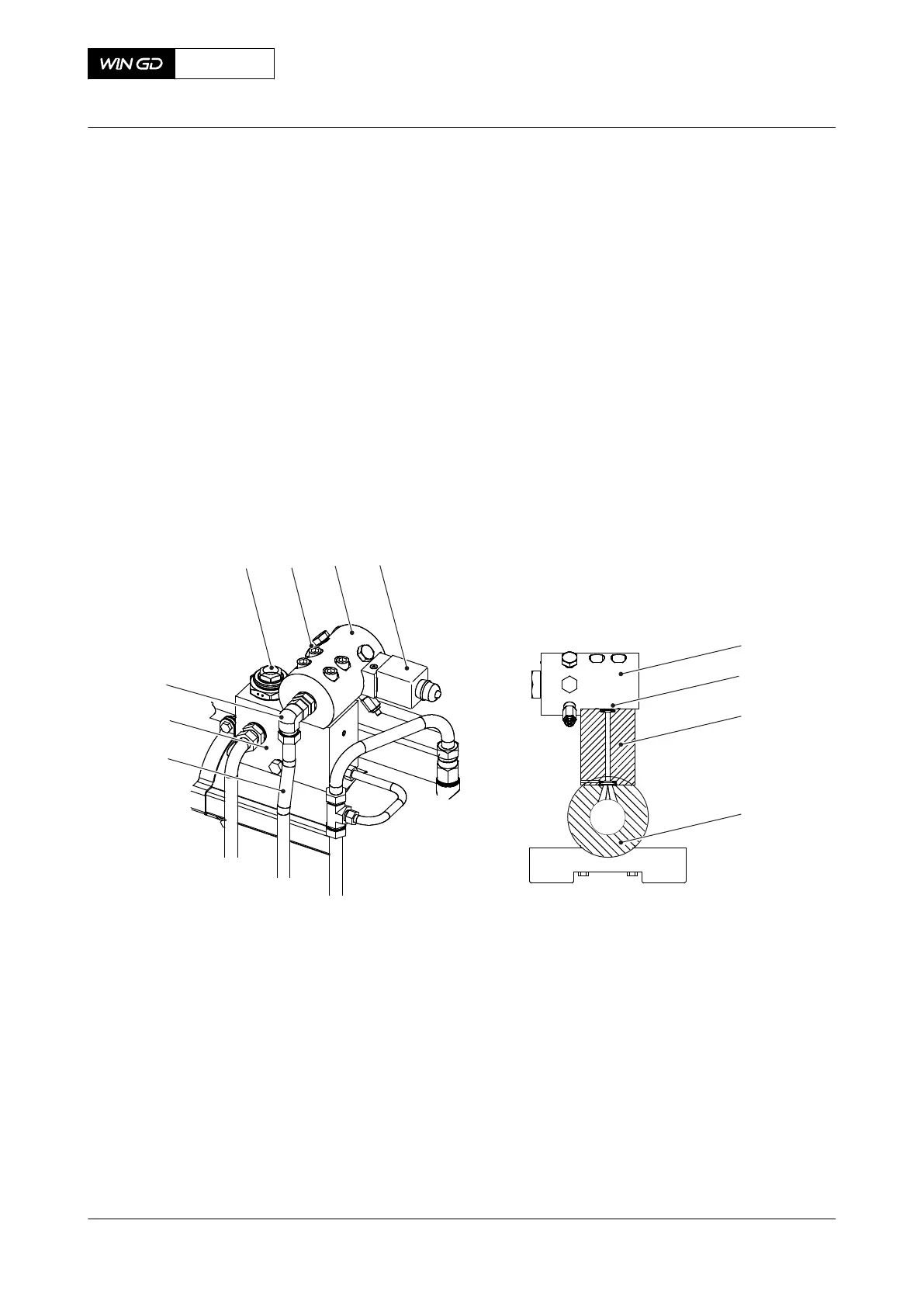

Fig 10-25 Pressure control valve - install
001
002
003
004
006
003
005
007 008 001 009
CLOSE UP
• None
X62DF
AA00-5562-00AAA-720A-A
Maintenance Manual Fuel rail - install the pressure control valve
Winterthur Gas & Diesel Ltd.
- 591 - Issue 002 2020-10
