PROCEDURE

1 Prepare the scavenge air cooler (SAC) for removal.

NOTE: Related to the engine you first have to remove the adjacent SAC to make free

the way. All pictures are examples.

1.1 Close the shut-off valves (007, Figure 11-14).

1.2 Open the vent valve (001).

1.3 Use the drain valve (004) to drain the water from the SAC (005).

1.4 Remove the attached pipes (002, 006) as necessary.

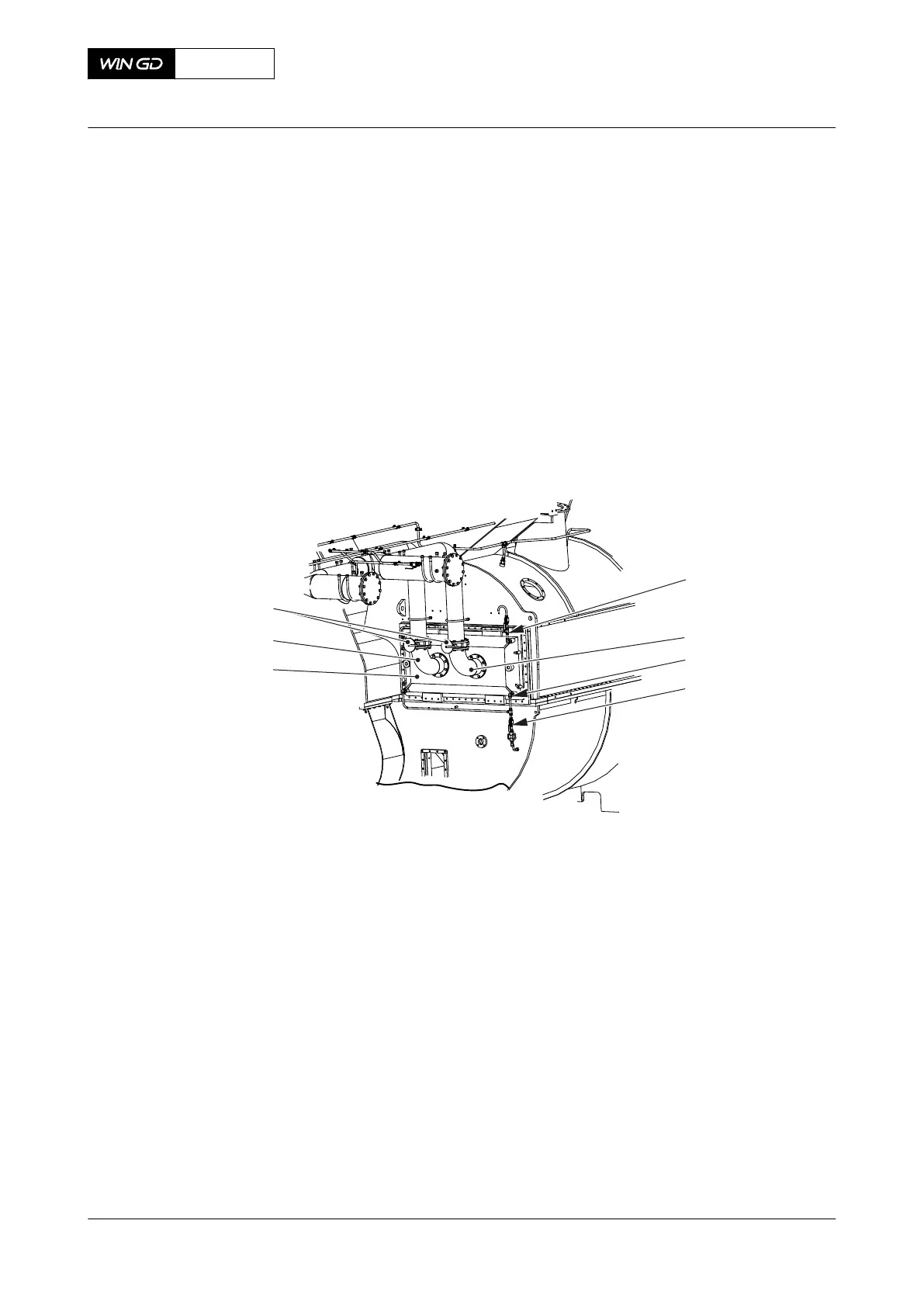

Fig 11-14 Scavenge air cooler (example) - prepare

007

006

005

002

001

003

004

X62DF

AA00-6606-00AAA-520A-A

Maintenance Manual Scavenge air cooler - remove

Winterthur Gas & Diesel Ltd.

- 648 - Issue 002 2020-10
