WinGD X62DF - Water Separator - View 3

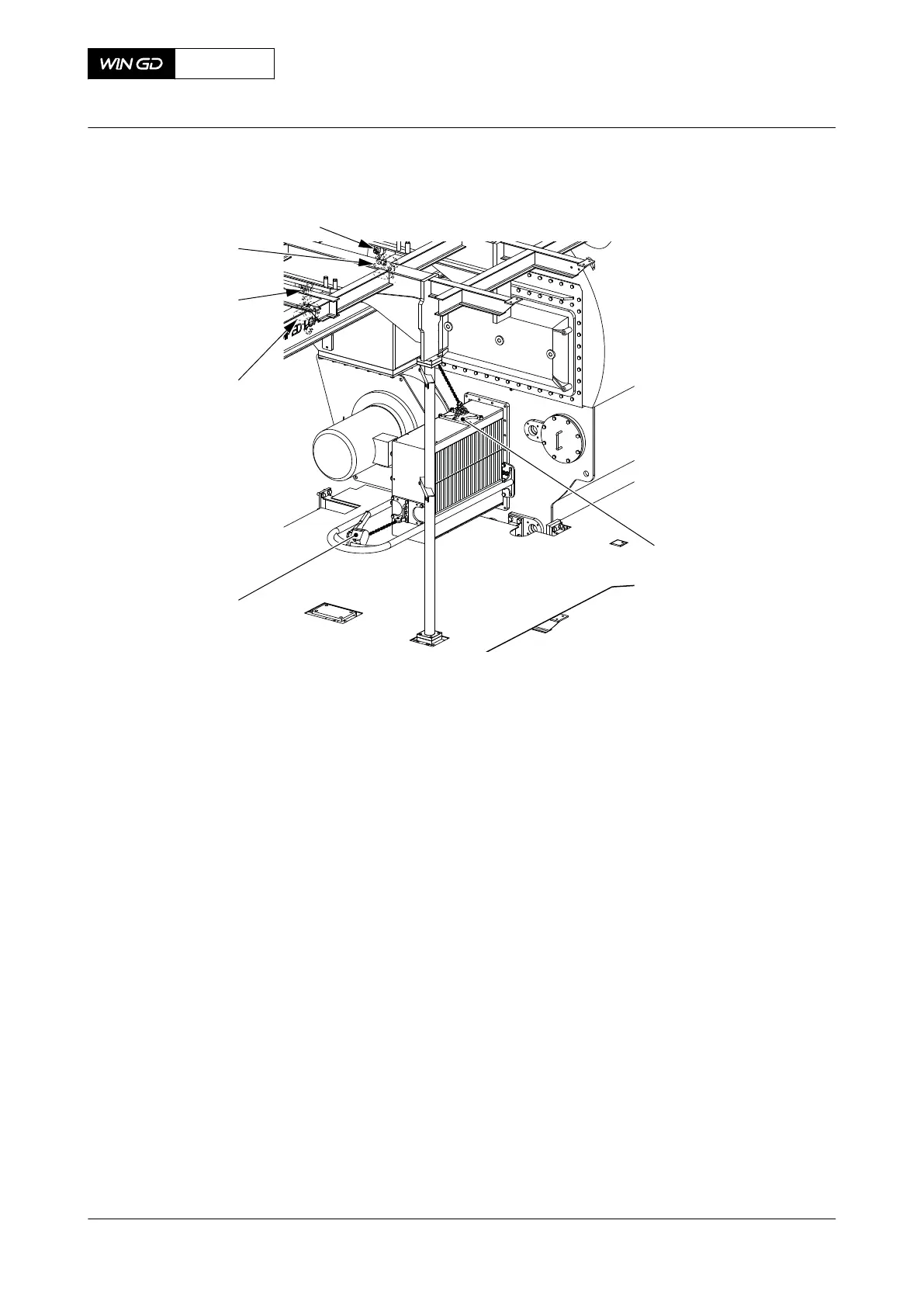

Fig 11-23 Water separator - view 3
001
002
003
004
005
006
00447
5 Operate the lever chain hoist (001, Figure 11-23) until you can see the bores in the
middle of the top side of the water separator.
6 Install the lifting tool (002).
7 Attach the shackles (004 and 005) and the spur-geared chain blocks (003 and 006) to
the lugs of the platform at the exhaust side.
8 Put the spur-geared chain block (003) into the last hole of the lifting tool (002).
9 Operate the spur-geared chain block (003) to get sufficient tension to hold the water
separator.
