48 Operate the lever chain hoist (004) to lift the platform a small distance from the
crankshaft.
49 Operate the turning gear to lift the platform sufficiently to remove the tools from the
cylinder block.
50 Use the chain blocks (012) to remove the bracket (010).
51 Remove the chain blocks (012) and eye bolts (008).
52 Put the removed tools on the platform.
53 Operate the turning gear to lower the crank to BDC.
54 Remove the tools from the platform.
55 Remove the platform.
56 Remove all remaining eye bolts, chain blocks, lever chain hoists and shackles etc.
57 Remove the protection from the crosshead pin.

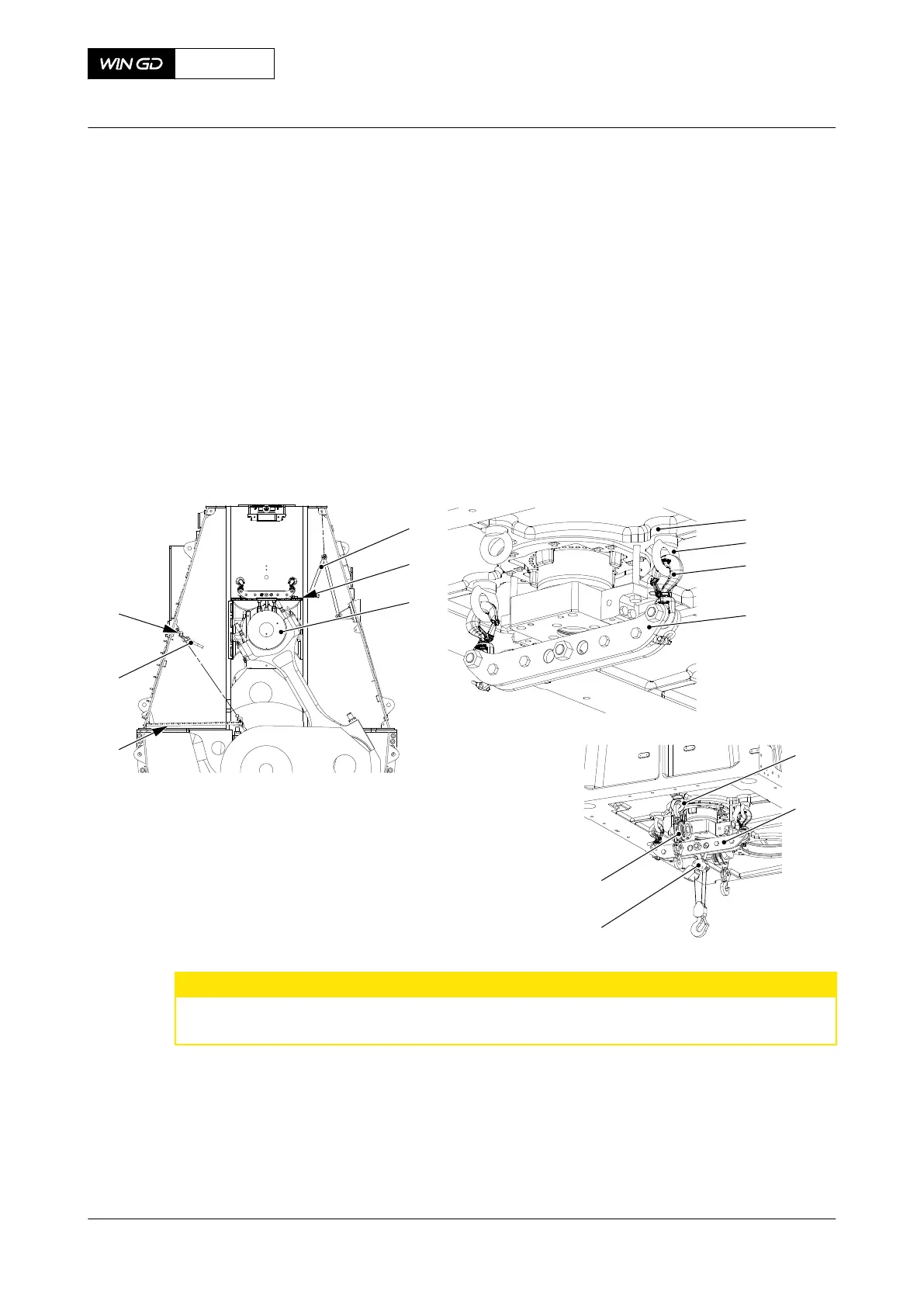

Fig 8-63 Tools - remove
001
002
003
004
005
006
007
008
009
010
008
010
011
012
00745
CAUTION
Damage will occur to an incorrectly connected toggle lever. Make sure that you connect
the toggle lever correctly.
58 Attach the toggle lever (001, Figure 8-64) to the crosshead pin (002). Make sure that the
toggle lever is in the correct position shown.
59 Do the clearance checks, refer to section 8.6.2 Crosshead - do a check of the
clearances.
X72DF
AA00-3326-00AAA-720A-A
Maintenance Manual Crosshead - install
Winterthur Gas & Diesel Ltd.
- 469 - Issue 002 2020-10
