WinGD X62DF - Cylinder Liner - Storage

PROCEDURE
1 Attach the chain (002, Figure 7-5) to the lifting tool (003) and the engine room crane
(001) as shown.

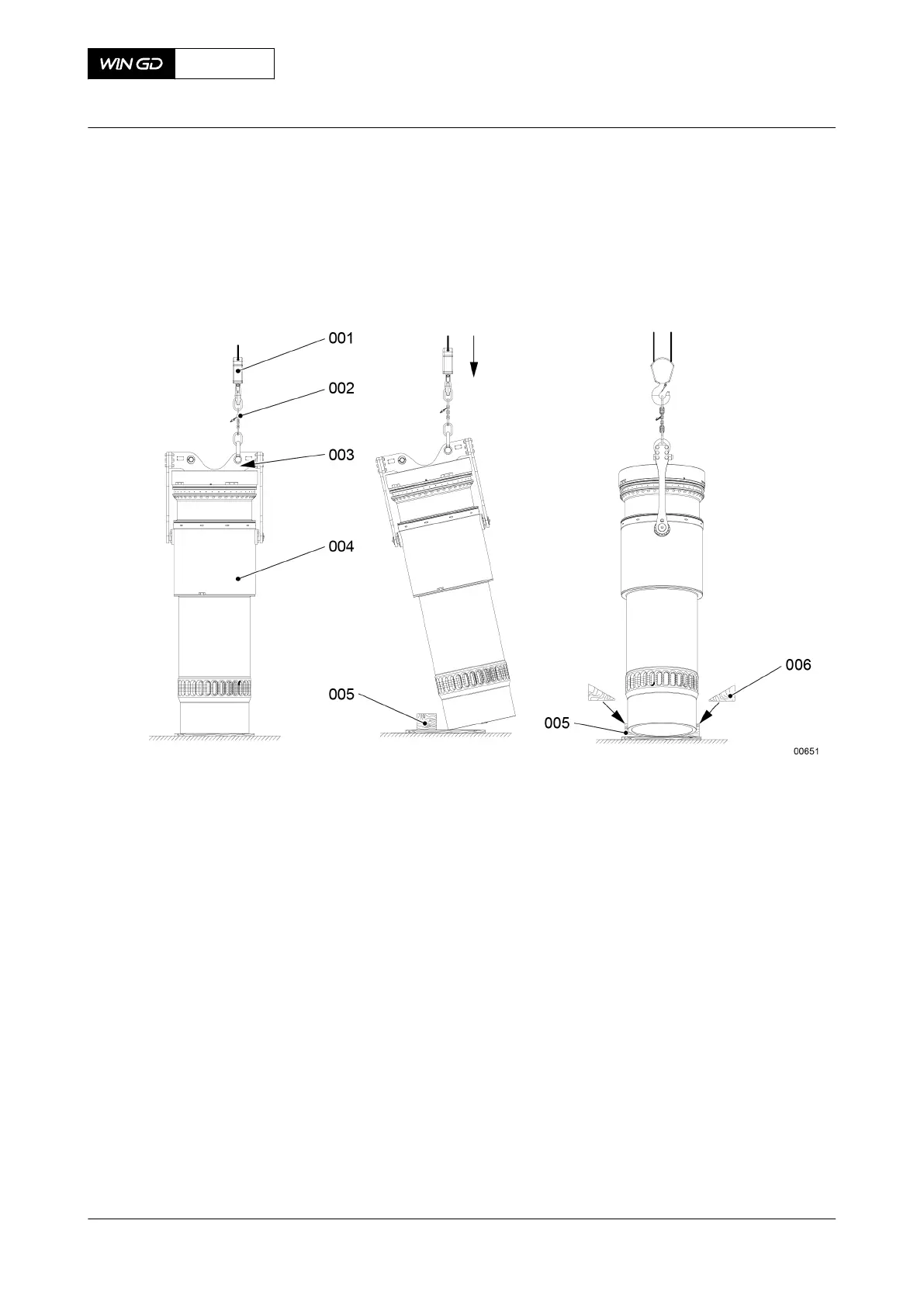

Fig 7-5 Cylinder liner - storage
2 Put the wooden underlay (005, 007) and the wooden chocks (006) in position as shown
in Figure 7-6.
3 Lift the cylinder liner (004) a small distance to tilt the cylinder liner.
4 Operate the engine room crane to lower the cylinder liner (004) on to the wooden
underlays (005, 007).
5 Fully lower the cylinder liner.
6 Turn the cylinder liner 90°.
7 Put the wooden chocks (006) in position to prevent movement.
8 Remove the lifting tool (003).
9 Put one more wooden chock (006) in position as shown.
