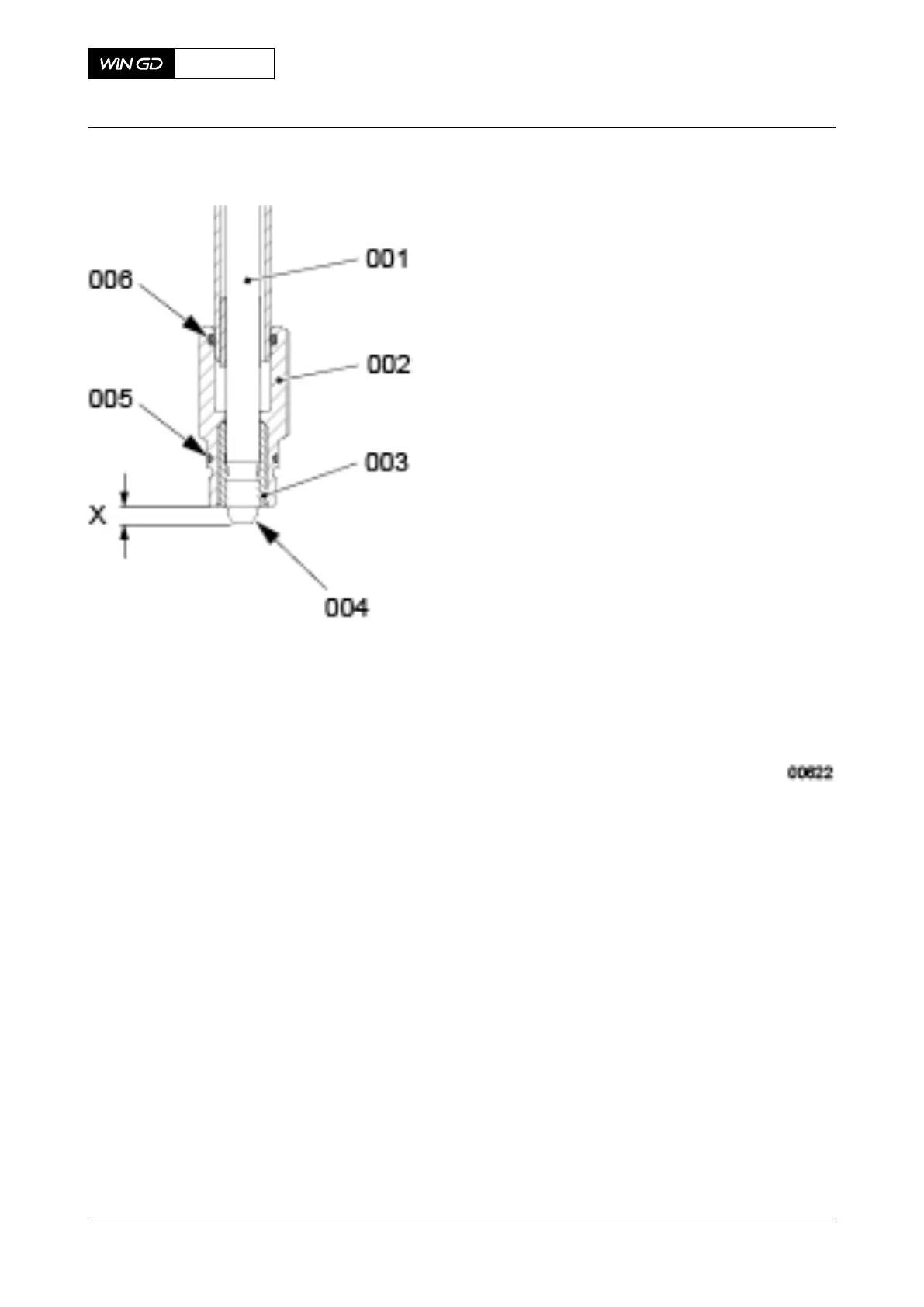

Fig 13-18 Pilot fuel pipe- prepare
7 Install the pilot fuel pipe (004 or 007).
7.1 Attach the pilot fuel pipe (004 or 007, Figure 13-19) to the distributor block (006)
and the pilot injection valve.
7.2 Apply Never Seez NSBT8 to surfaces that touch.
7.3 Use the torque wrench to torque the coupling nuts (003 or 008) and (010 or 011)
to the correct value, refer to section 16.1 Tightening instructions.
8 Install the pilot fuel pipe (001).
8.1 Attach the pilot fuel pipe (001) to the distributor block (006) and the connection
on the rail unit.
8.2 Apply Never Seez NSBT8 to surfaces that touch.
8.3 Use the torque wrench to torque the coupling nuts (005, 002) to the correct
value, refer to section 16.1 Tightening instructions.
8.4 Attach the pilot fuel pipe (001) to the cylinder cover with the pipe clamp (012)
and the screws (009).
8.5 Torque the screws (009).
X72DF
AA00-8790-00AAA-720A-A
Maintenance Manual HP pilot fuel pipe - install
Winterthur Gas & Diesel Ltd.
- 774 - Issue 002 2020-10
