PROCEDURE
1 Remove the four screws (008, Figure 13-8) from the flange (007).
2 Remove the four screws (003) from the flange (004).
3 Carefully remove the HP fuel pipe (001) from the injection valve (009) and the and flow
limiting valve (005).
4 Apply protection to the sealing faces (002, 006) and the open ends of the HP fuel pipe
(001).

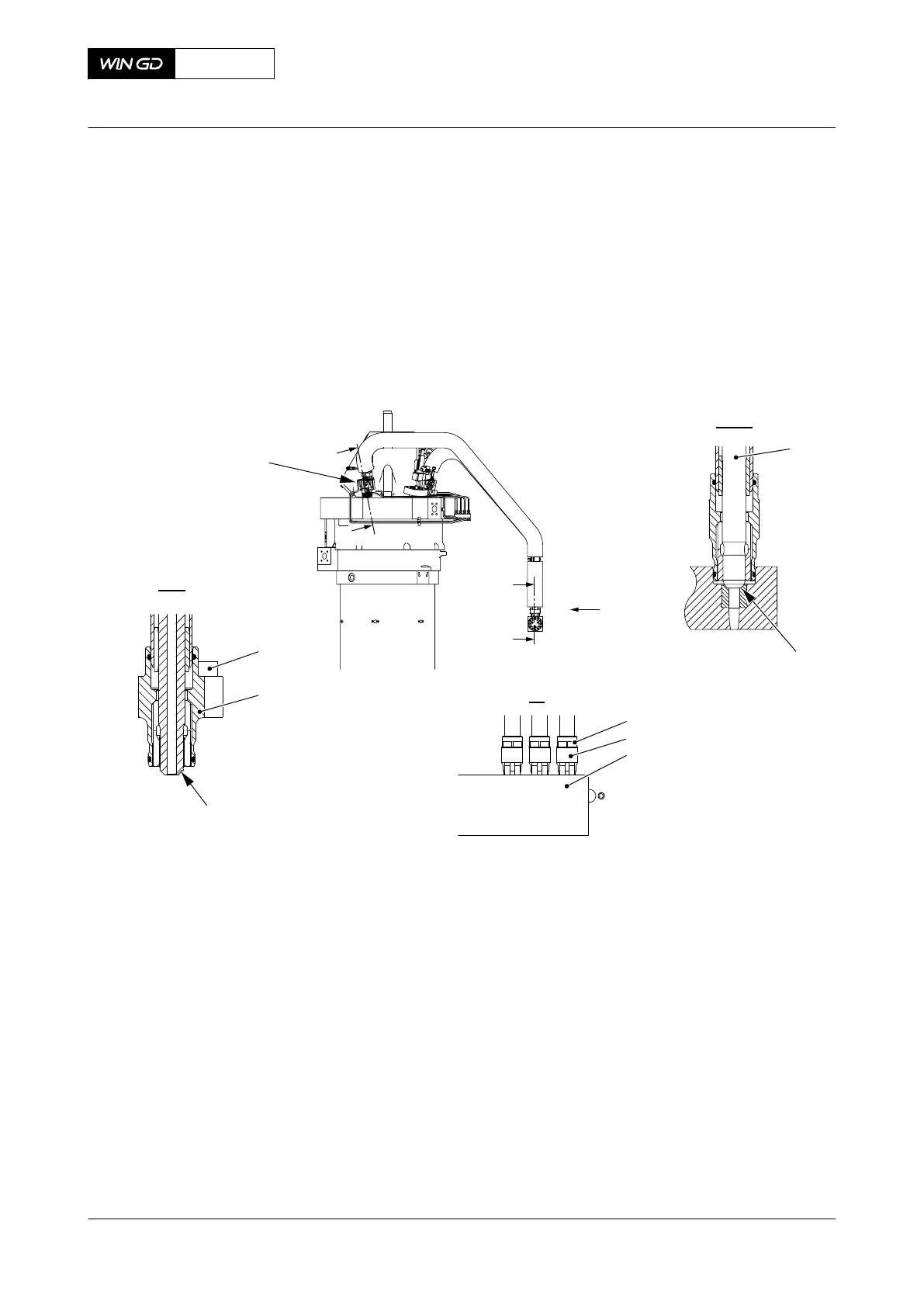

Fig 13-8 HP fuel pipe - removal
