19 Turn back 5.0 mm the special nut (003). Make sure that the hydraulic force pushes the
coupling-half against the spherical disc (004).
20 Make sure that the coupling-half is loose.
21 Release the pressure from the HP oil pump (008).
22 Remove the gear coupling.

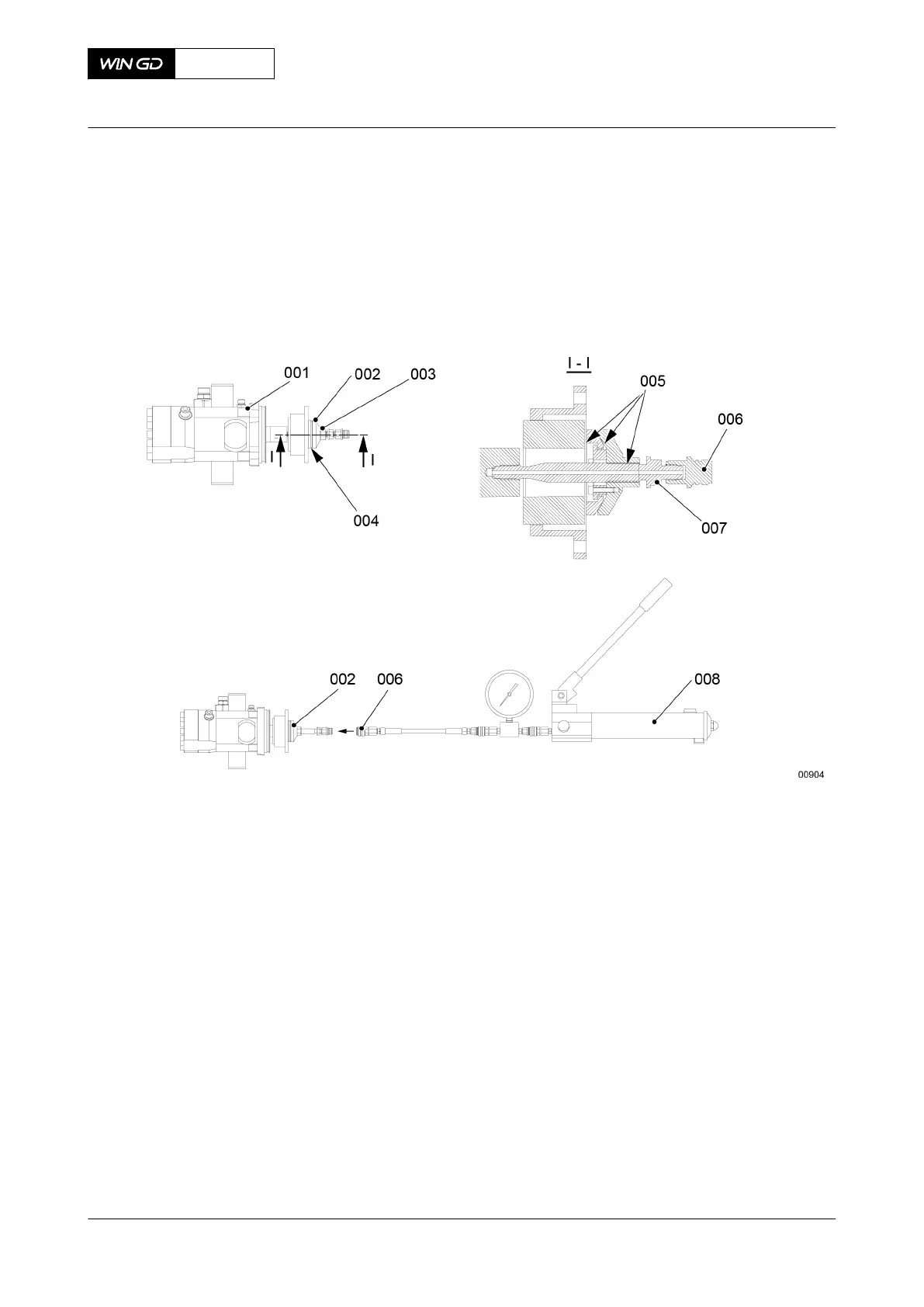

Fig 10-2 Supply unit for pilot fuel - tool
CLOSE UP
• None
X62DF
AA00-5555-00AAA-520A-A
Maintenance Manual Supply unit for pilot fuel - remove the pump
