17 Remove the lubricating oil pipe (008) and the return pipe (009) from the GAV (004).
18 Seal the openings of the pipes (008, 009) with plugs to prevent contamination.
19 Install the eye bolt (004) to the GAV (005) in the position shown.
20 Attach an applicable lifting tool to the eye bolt (004).
21 Remove the Allen screws (006).
22 Move the GAV carefully to a clean, dry area.
23 Attach a flange or plug to the opening of the pipe (001).

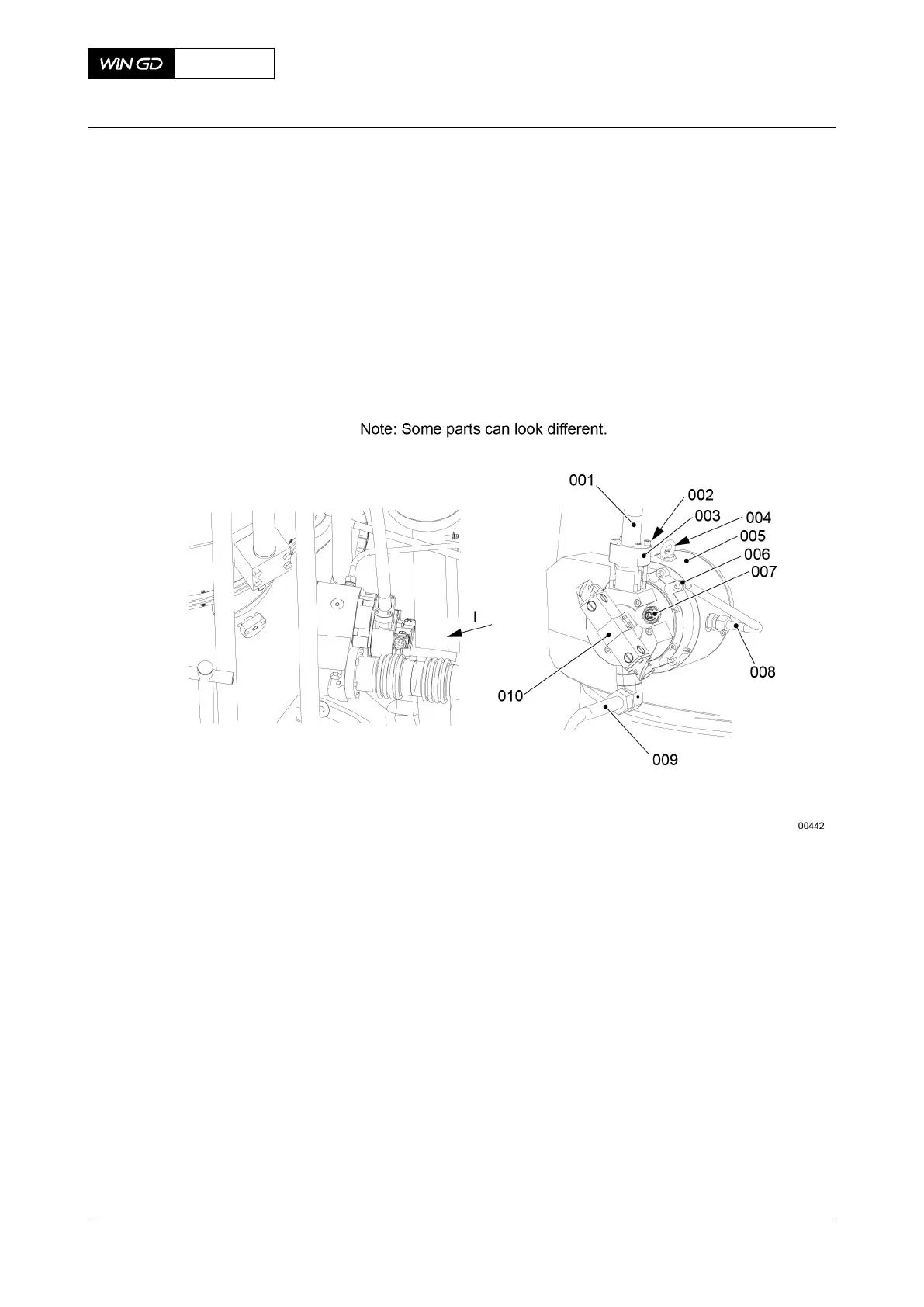

Fig 7-19 Gas admission valve - remove
CLOSE UP
• None
X72DF
AA00-2140-00AAA-520A-A
Maintenance Manual Gas admission valve - remove
Winterthur Gas & Diesel Ltd.
- 208 - Issue 002 2020-10
