PROCEDURE
1 Remove the adjustable platform (001) from the columns (005).
2 Remove the platform (004) from the crankshaft (002) and the longitudinal beam (003).

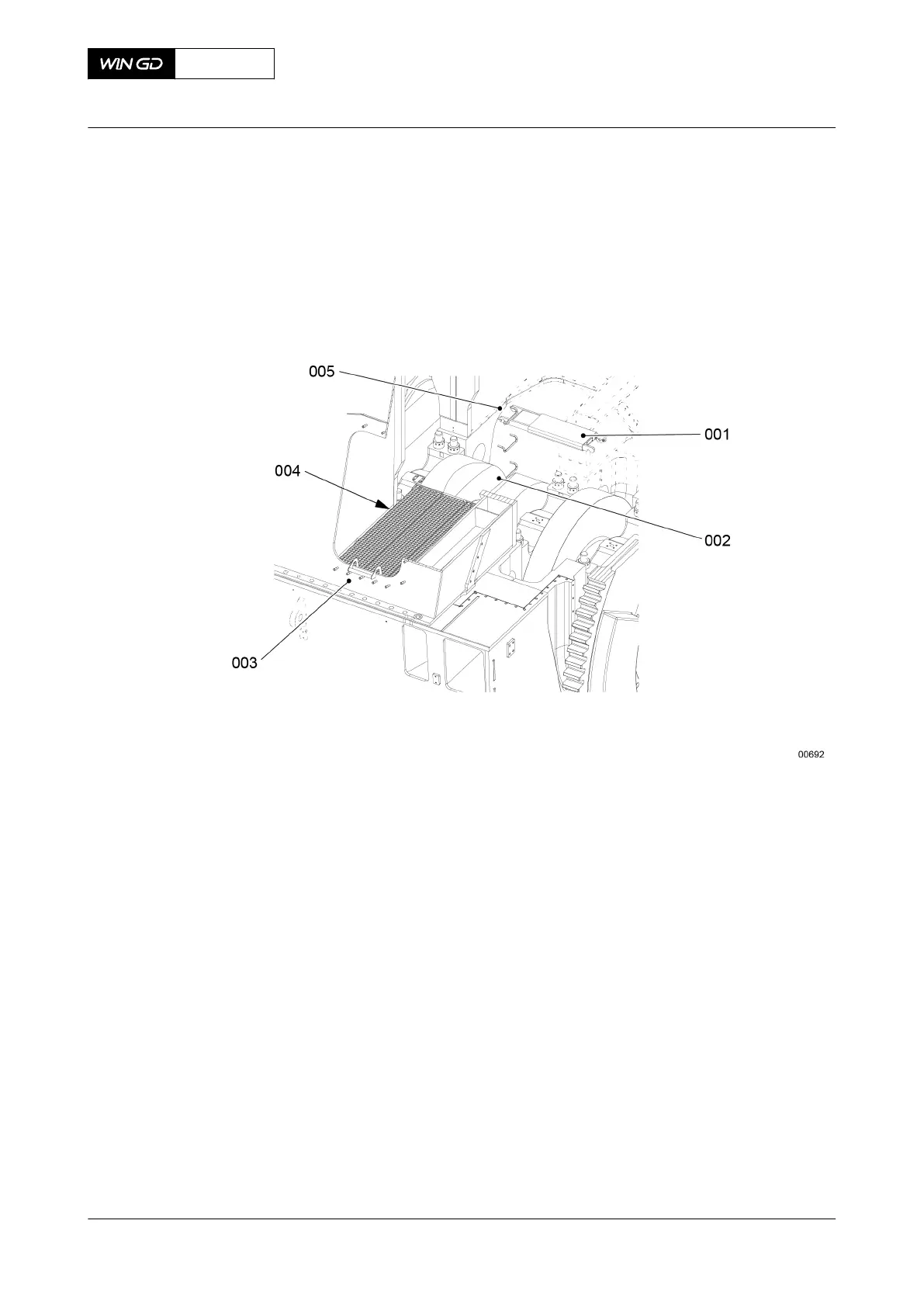

Fig 8-6 Platforms
CLOSE UP
• None
X72DF
AA00-3103-00AAA-520A-A
Maintenance Manual Crankshaft - remove the work platform
Winterthur Gas & Diesel Ltd.
- 359 - Issue 002 2020-10
