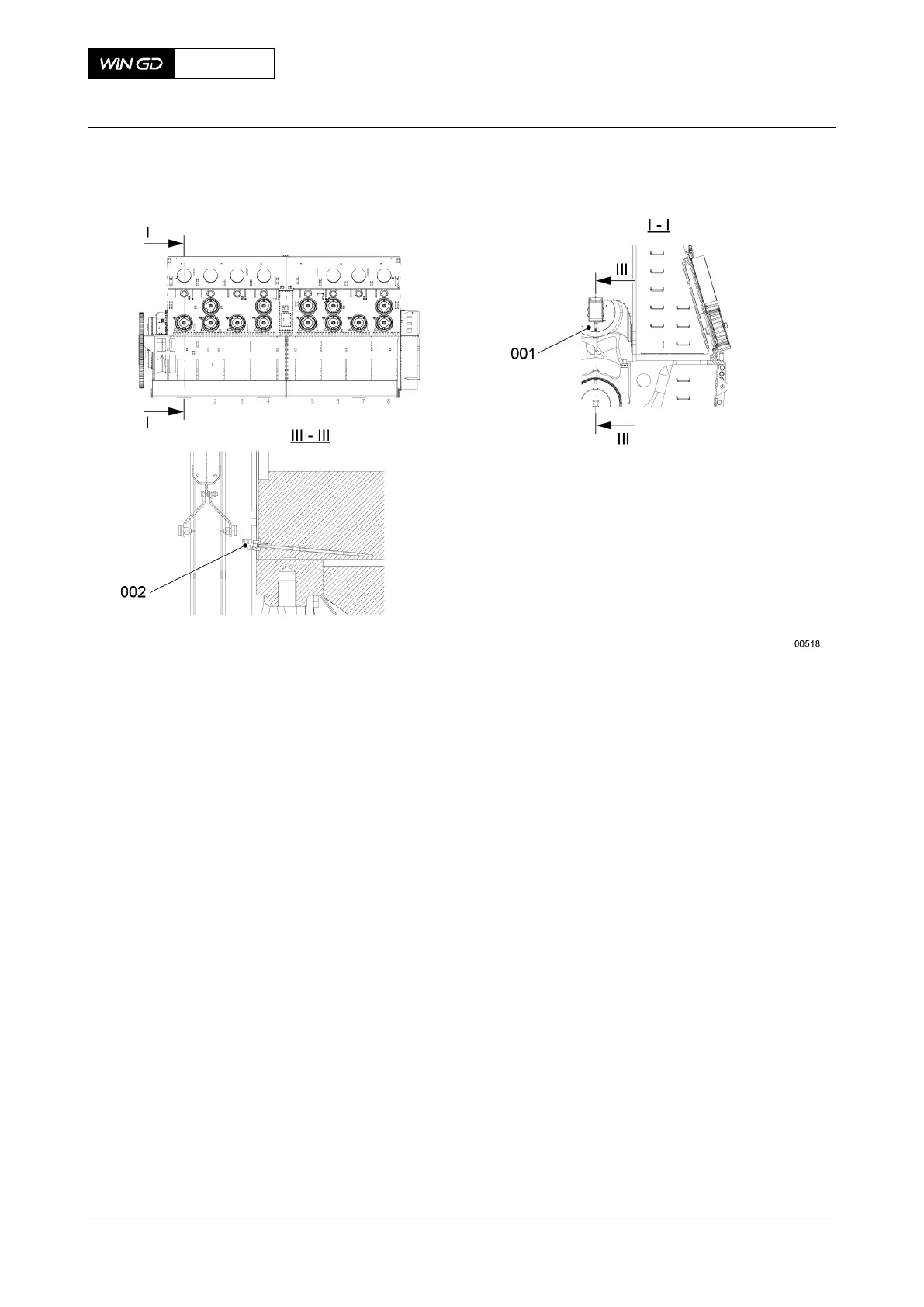

Fig 8-65 Crosshead bearing - temperature sensor
63 Install the round nuts to the elastic studs on the connecting rod, refer to section 4.2
Tighten a round nut with a pre-tensioner.
64 Install the top bearing cover, refer to section 6.2.2 Main bearing - install the cover.
65 Set to on the lubricating oil pump.
66 Make sure that the crosshead and the bottom end bearings of the connecting rod have
sufficient lubrication.
67 Set to off the lubricating oil pump.
CLOSE UP
• None
X72DF
AA00-3326-00AAA-720A-A
Maintenance Manual Crosshead - install
Winterthur Gas & Diesel Ltd.
- 471 - Issue 002 2020-10
