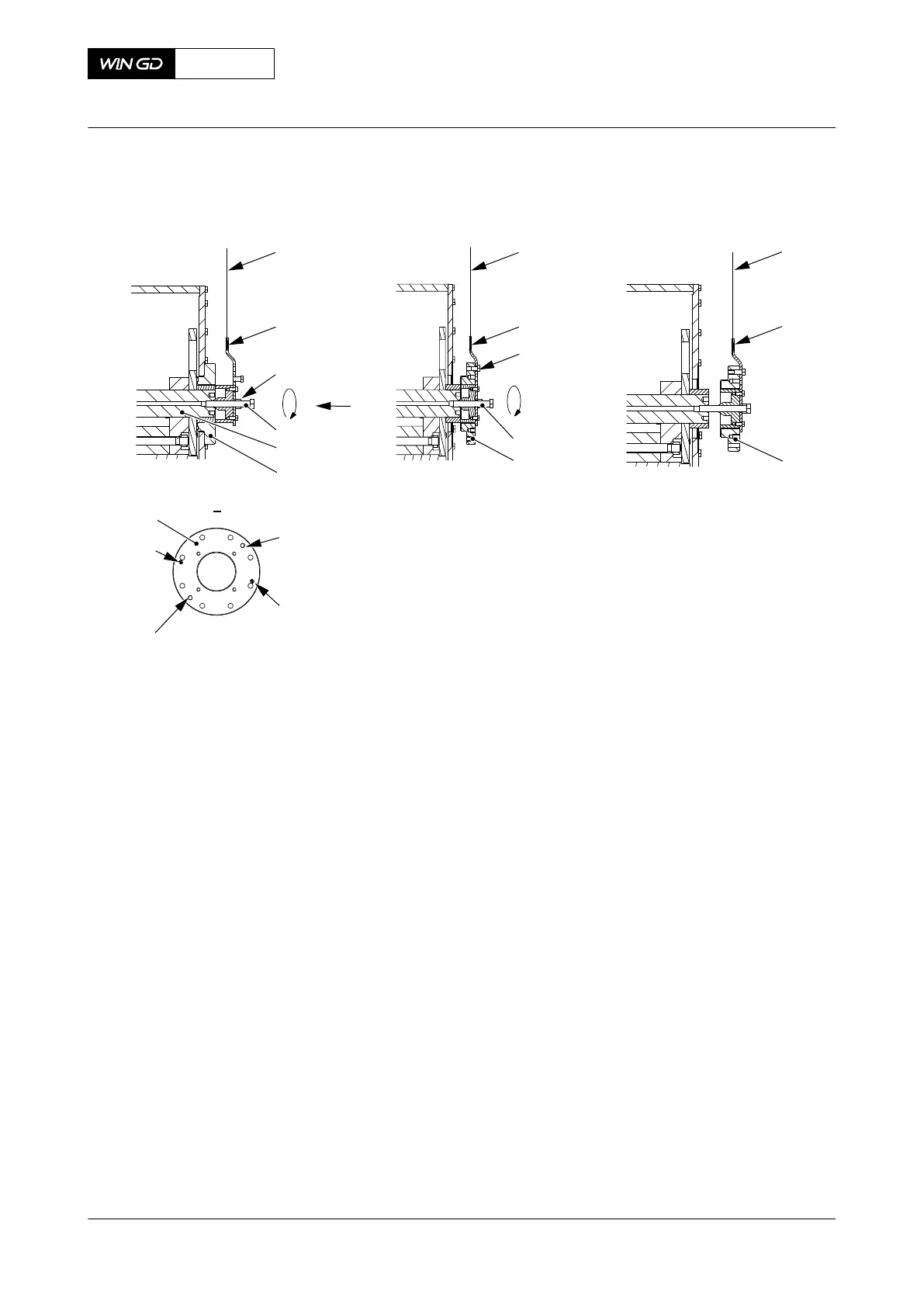

Fig 12-12 Outer bearing - remove 2
I
001
00581
007
006
008
007
008
I
002
001
002
003
004
005
006
007
004
006
OUTER
SIDE
001
002
006
2.6 Tighten the nut (003) to push the lifting tool (002) against the pin (005).
2.7 Put the two M20 x 140 mm screws into the two threaded holes (007) in the
bearing (006).
2.8 Tighten equally the two M20 x 140 mm screws to push out the bearing (006).
The bearing moves on to the lifting tool (002).
2.9 Tighten the screw (007) to hold the bearing (006).
2.10 Operate the engine room crane (001) to hold the weight of the bearing (006).
2.11 Carefully remove the screw (004).
2.12 Operate the engine room crane (001) to move the bearing (006) to an applicable
area.
2.13 Remove the two taper pins (008).
2.14 Remove the two taper pins (008).
2.15 Remove the two M20 x 140 mm screws.
CLOSE UP
• None
X72DF
AA00-7758-00AAA-520B-A
Maintenance Manual Integrated electric balancer - remove the bearing (outer side)
