Phaser 4600/4620/4622 Printer Service Manual
IQS 2, IQS 3
Revised
3 Image Quality
IQS 2 Skew
Documents
Specifications
Refer to Table 1.
IQS 3 Registration
Documents
Internal Test Page DC612, TP1.
Specifications
Refer to Table 1.
Corrective Action
Refer to dC131 Table 1 to adjust registration using different NVMs.
Table 1 Margin Specifications
Mode Tray
Margin Specification (mm)
Magnification
Error
Lead Edge C-D Side Edge A-B
Simplex Tray 1 and 2 12.7± 1.0 12.7± 1.5 Horizontal
177.8 ±1.5mm
Vertical
241.3±1.5mm
Optional Trays 12.7± 1.5 12.7± 2.0
Duplex Tray 1 and 2 12.7± 1.5 12.7± 2.0
Optional Trays 12.7± 2.0 12.7± 2.5
Table 1 Registration measurement
Registration Specification
Lead edge F 4mm (5/32 inches) +/- 3mm (1/8 inches)
Top edge E 4mm (5/32 inches) +/- 3mm (1/8 inches)

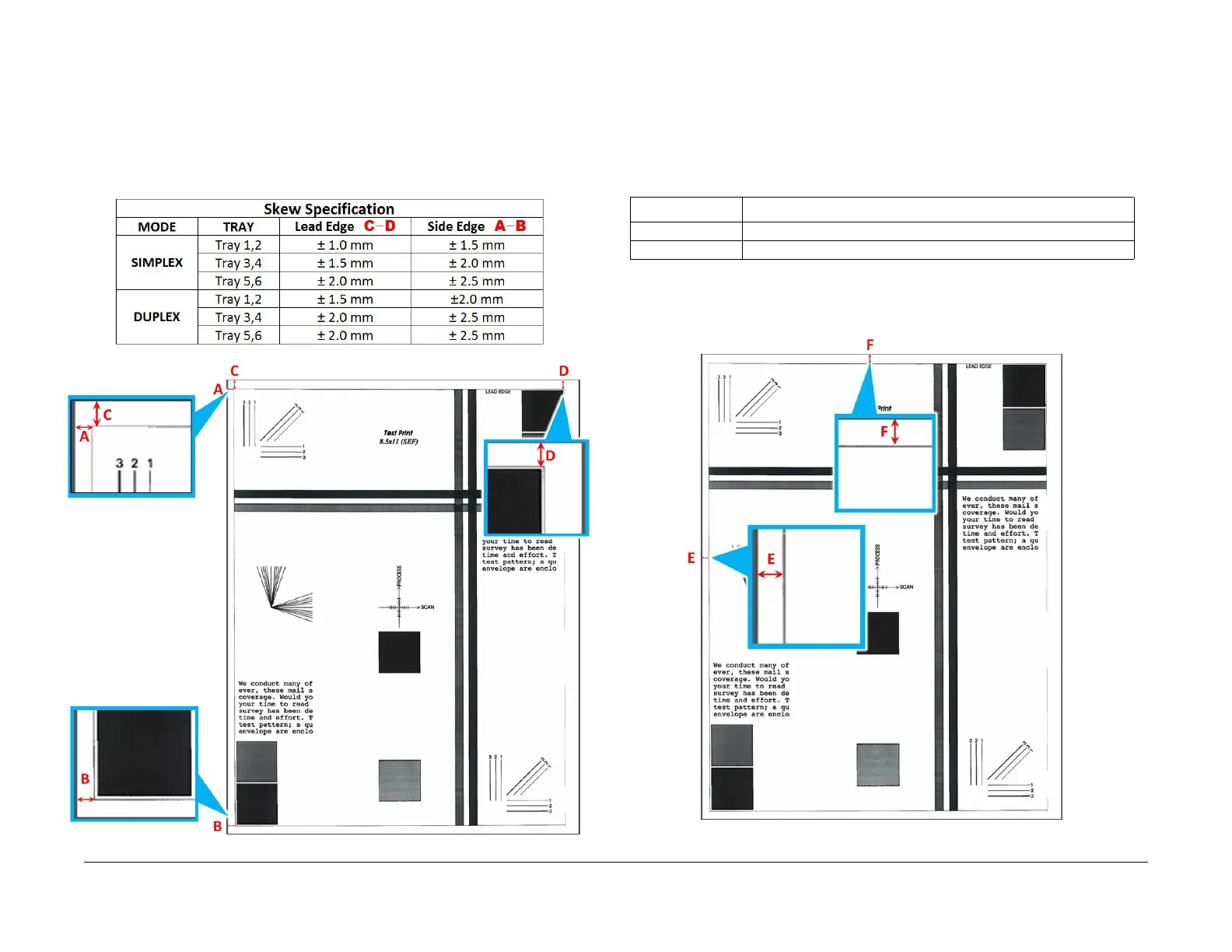

Internal Test Page DC612, TP1
Side 2

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
