Xerox Phaser 4600 Service Manual

04/2016
4-141
Phaser 4600/4620/4622 Printer Service Manual
REP 12.13
4 Repairs and Adjustments
Revised
REP 12.13 Staple Cartridge Door Interlock Switch
Parts List on PL 12.45 Item 4
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the right cover, REP 12.11.
3. Remove 3 screws (1 metal, 2 plastic) that secure the stapler bracket and stapler to the
Finisher., Figure 1.

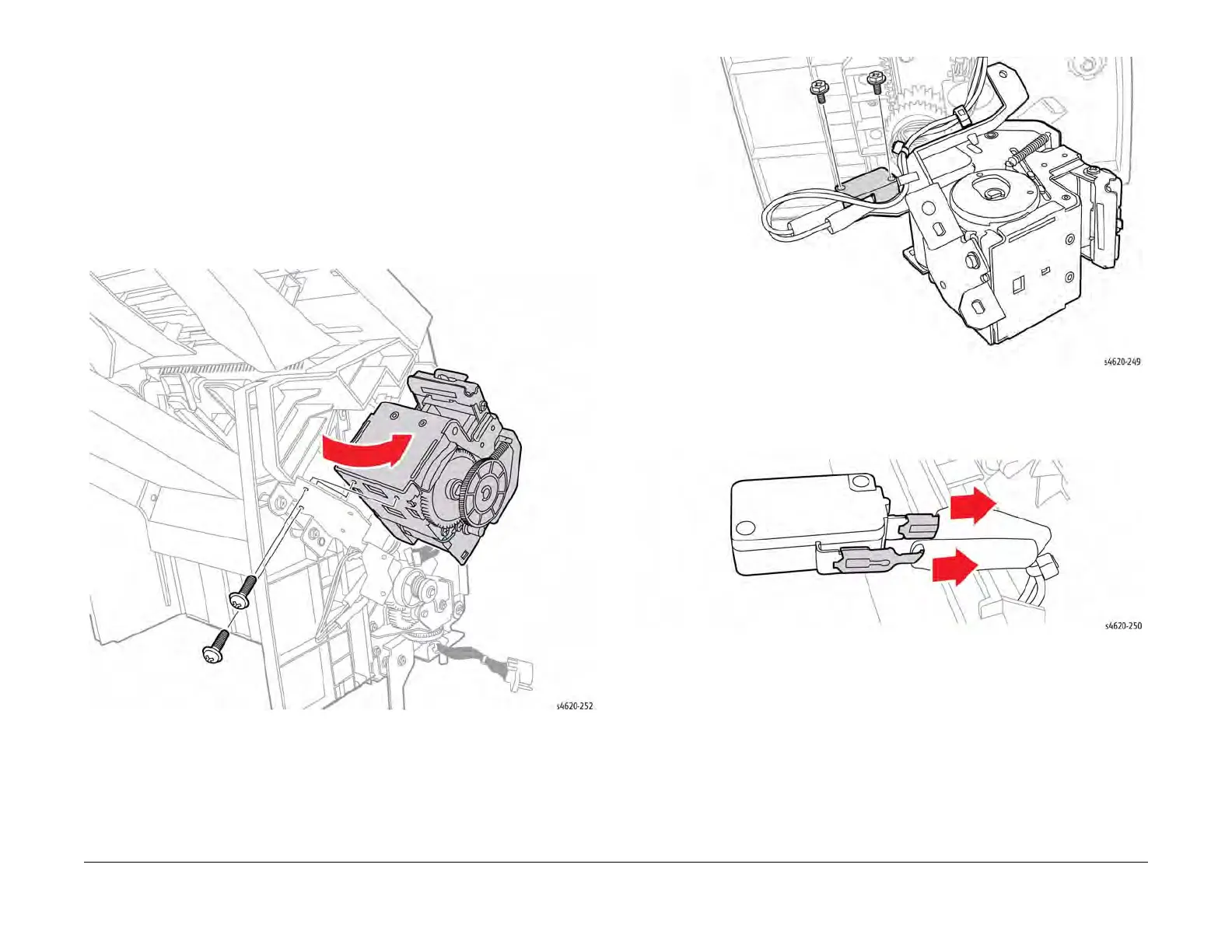

Figure 1 Remove the Stapler
4. Remove 2 screws (metal) that secure the switch to the bracket, Figure 2.
Figure 2 Remove the switch bracket screws
5. Slide the insulation off the switch terminals and using a small screwdriver, release the har-
ness connectors from the switch, Figure 3.
Figure 3 Remove the harness from the switch
