Phaser 4600/4620/4622 Printer Service Manual
PL 9.15
5 Parts List
Revised

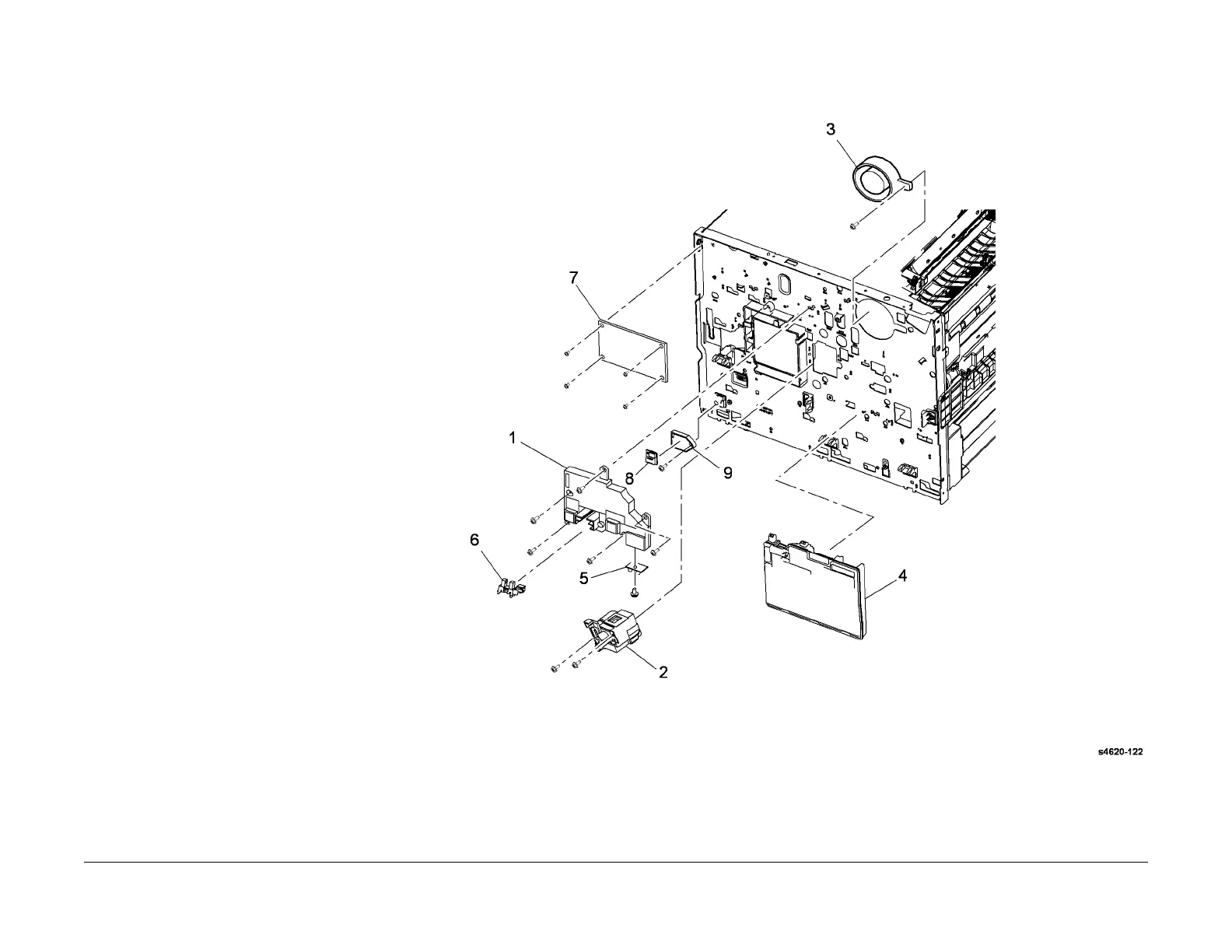

PL 9.15 Waste Toner
Item Part Description
1 – Bias contact cover (Not Spared)
2 001N00528 Pipe assembly (REP 9.7)
3 127N07668 Left side chassis fan (MOT04-120)
(REP 9.4)
4 093N01732 Waste toner cartridge
5 – Waste toner full sensor (Not
Spared) (REP 9.6)
6 130N01628 Waste toner cartridge detect sensor
(REP 9.3)
7 140N63465 Joint board (REP 9.8)
8 – Environmental sensor (Not Spared)
(REP 9.5)
9 – Sensor holder (Not Spared)
