Phaser 4600/4620/4622 Printer Service Manual
REP 12.10, REP 12.11
4 Repairs and Adjustments
Revised
REP 12.10 Left Tamper Home Position Sensor
Parts List on PL 12.35 Item 10
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the Left Cover, REP 12.1.
3. Release the hook and disconnect P/J118 to remove the sensor., Figure 1.

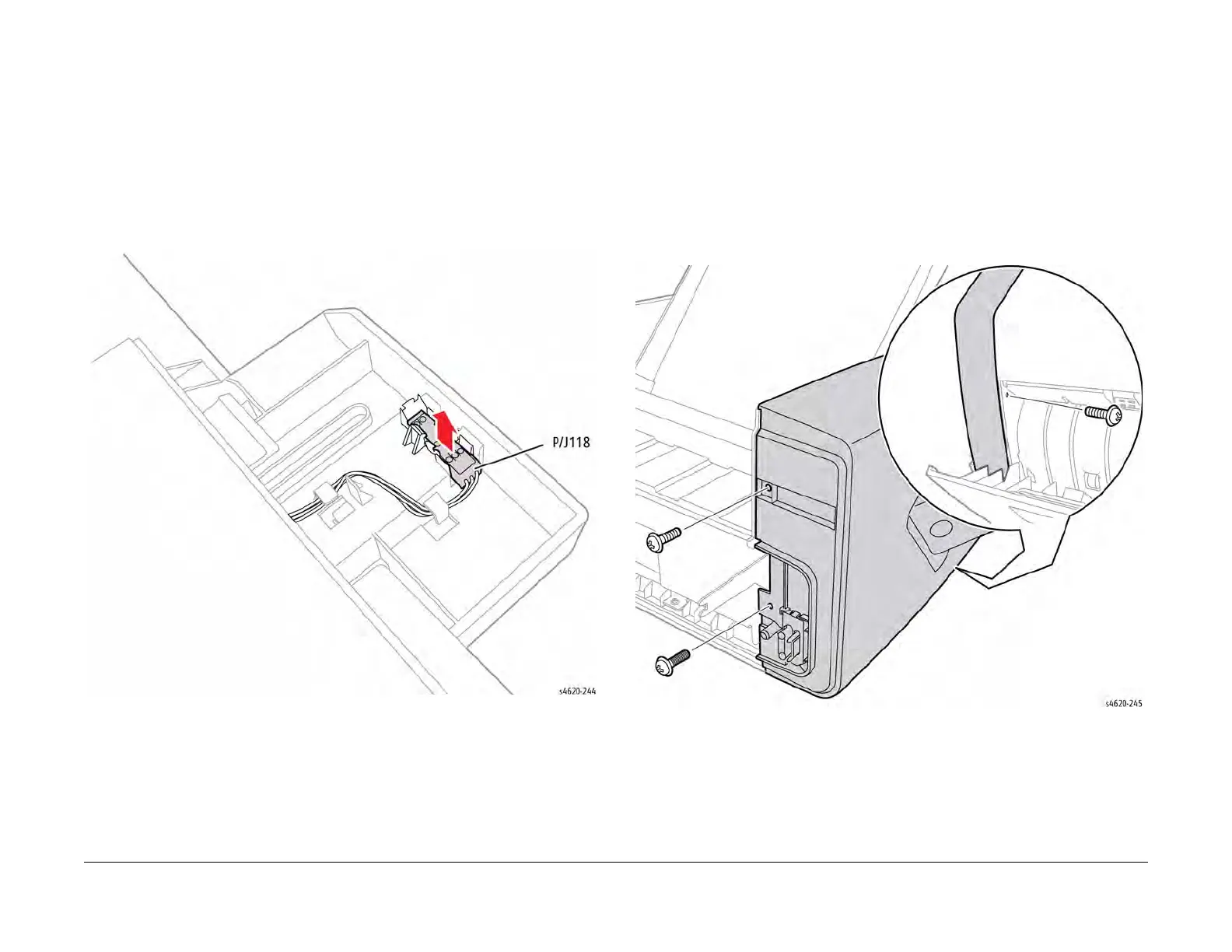

Figure 1 Remove the Left Tamper Home Position Sensor
REP 12.11 Finisher Right Cover
Parts List on PL 12.10 Item 2
Removal
NOTE: The option harness is fed through the Right Cover and retained by a small cover.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove 3 screws (1 metal, 2 plastic) that secure the cover, Figure 1.
Figure 1 Remove the right cover screws
3. Release 2 hooks that secure the option connector cover to the Right Cover and remove
the harness through the slot provided,
