Xerox Phaser 4600 Service Manual

04/2016
4-143
Phaser 4600/4620/4622 Printer Service Manual
REP 12.15, REP 12.16
4 Repairs and Adjustments
Revised
REP 12.15 Stacker Drive Assembly
Parts List on PL 12.25 Item 1
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the right cover, REP 12.11.
3. Remove 2 screws (metal) that secure the Stacker Drive Assembly to the Finisher.
4. Disconnect P/J124 from the motor to remove the assembly, Figure 1.

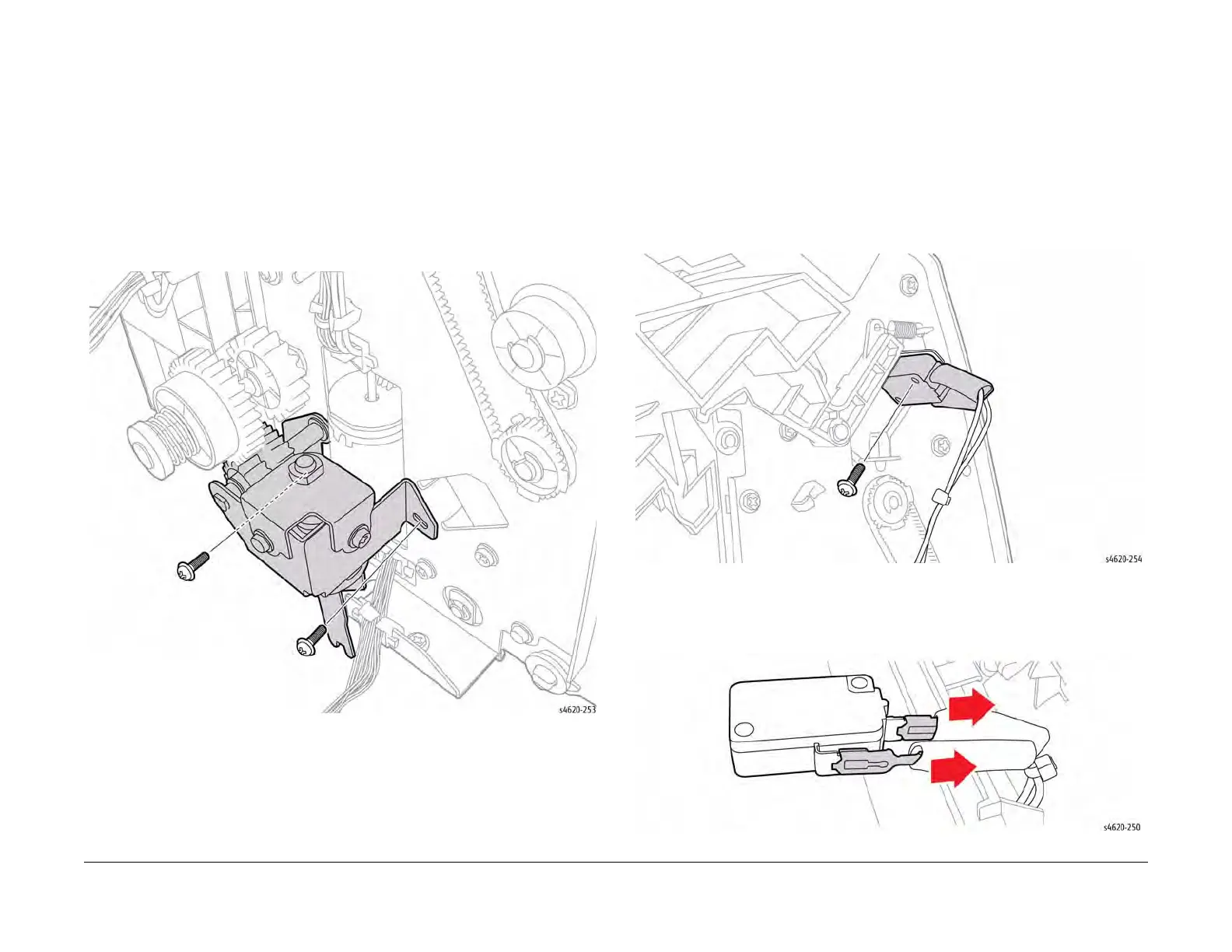

Figure 1 Disconnect and remove the Stacker Drive Assembly
Replacement
Compress the spring and gear to provide clearance to install the Stacker Drive Assembly
REP 12.16 Staple Interlock Switch
Parts List on PL 12.45 Item 5
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the right cover, REP 12.11.
3. Remove 1 screw that secures the switch to the Finisher, Figure 1.
Figure 1 Remove the Stapler Interlock Switch
4. Slide the insulation off the switch terminals and using a small screwdriver, release the har-
ness connectors from the switch, Figure 2.
Figure 2 Remove the switch from the harness
