5 Parts List

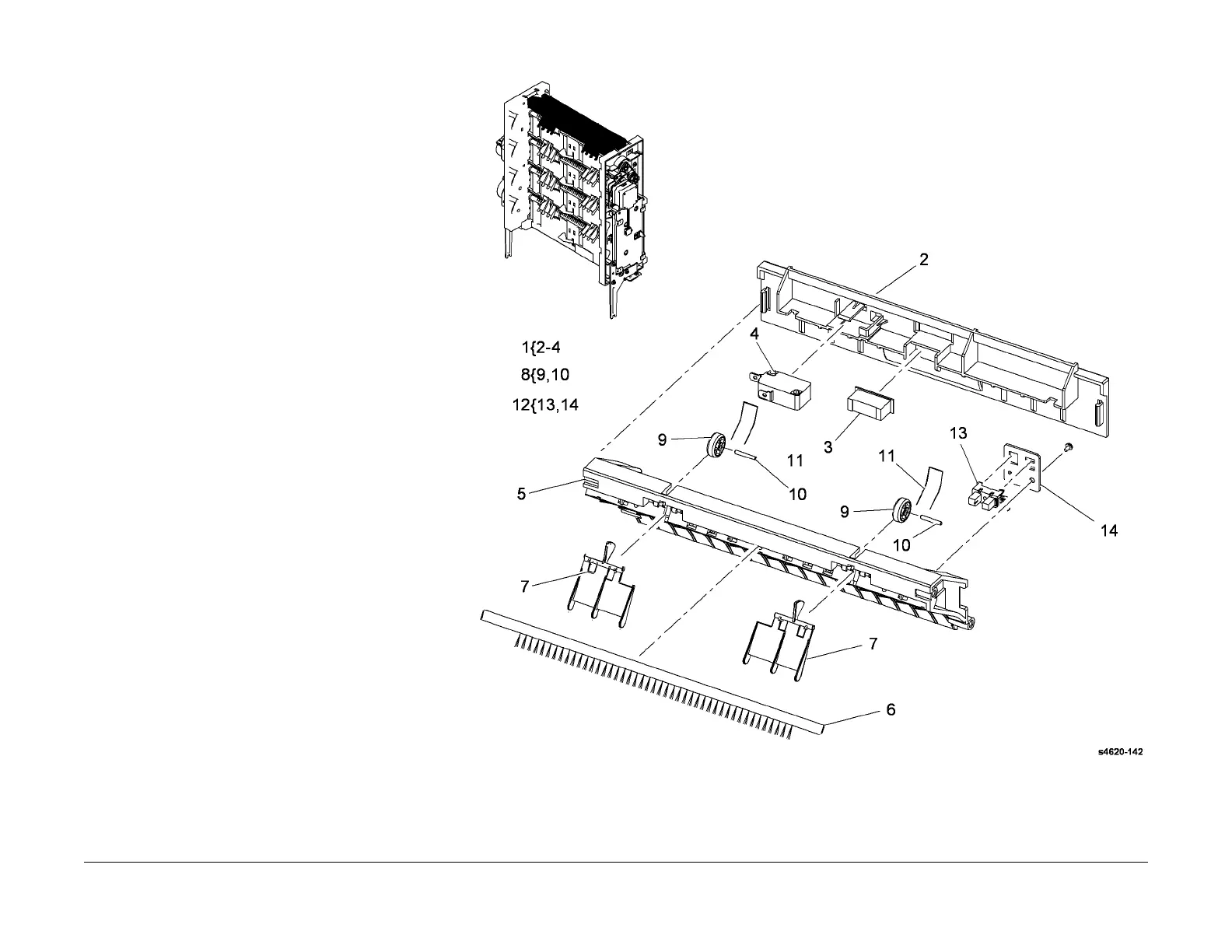

PL 11.30 Mailbox Top Stacker
Assembly
Item Part Description
1 – Harness cover assembly (Not
Spared)
2 – Harness cover (Not Spared)
3 – Magnet (Not Spared)
4 – Rear door interlock switch (S12-
915) (Not Spared) (REP 11.13)
5 – Top stacker shield (Not Spared)
6 – Static eliminator (Not Spared)
7 – Stacker full actuator (Not Spared)
8 – Idle feed roll assembly (Not Spared)
9 – Idle feed roll (Not Spared)
10 – Pin (Not Spared)
11 – Spring (Not Spared)
12 – Stack full sensor assembly (Not
Spared)
13 – Output tray 1 stack full sensor
(Q12-910) (Not Spared) (REP
11.12)
14 – Sensor bracket (Not Spared)
