Xerox Phaser 4600 Service Manual

04/2016
5-39
Phaser 4600/4620/4622 Printer Service Manual
PL 11.25
5 Parts List
Revised

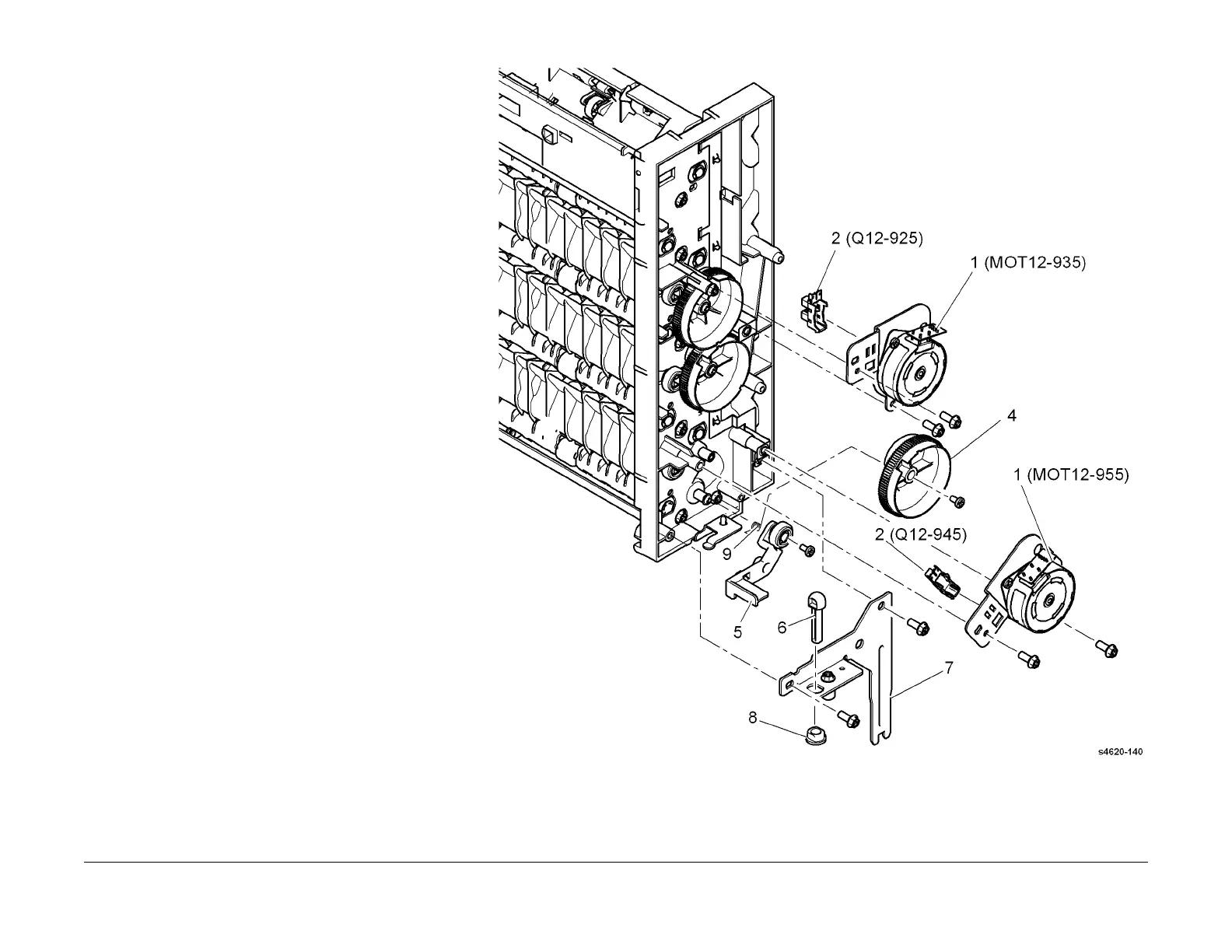

PL 11.25 Mailbox Diverter Assembly
Item Part Description
1 127N07671 Upper diverter drive assembly
(MOT12-935) / Lower diverter drive
assembly (MOT12-955) (REP 11.7)
2 – Upper diverter home position
sensor (Q12-925)/ Lower diverter
home position sensor (Q12-945)
(Not Spared) (REP 11.8)
3 – Not used
4 – Cam gear (Not Spared)
5 – Exit gate cam follower (Not Spared)
(REP 11.10)
6 – Exit gate actuator (Not Spared)
(REP 11.9)
7 – Mounting bracket (Not Spared)
8 – Bearing (Not Spared)
9 – Cam follower spring (Not Spared)
