Phaser 4600/4620/4622 Printer Service Manual
PL 8.35
5 Parts List
Revised

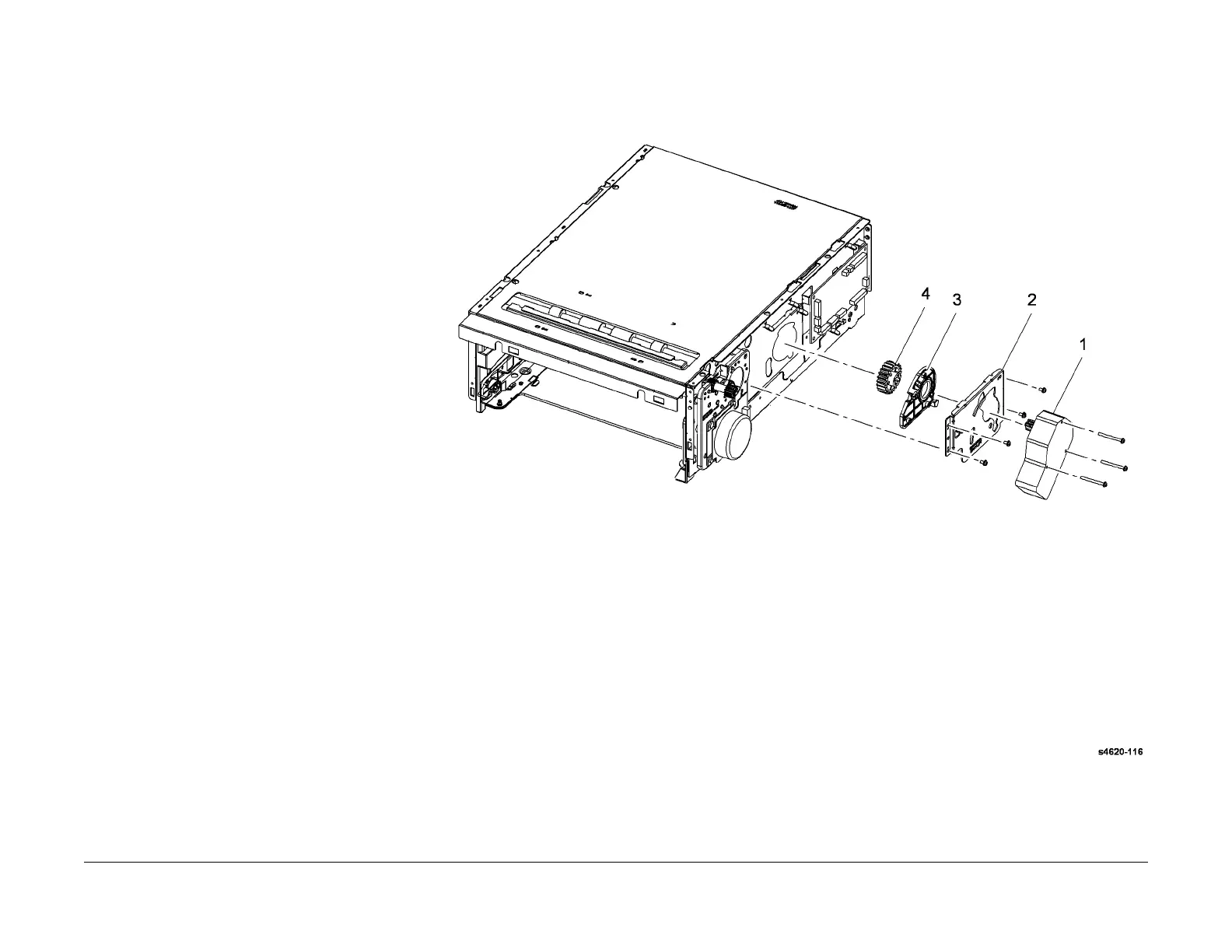

PL 8.35 Optional Feeder Lift
Assembly
Item Part Description
1 120N00537 Lift motor (see NOTE) (REP 7.29)
2 – Lift motor bracket (p/o item 1)
3 – Swing housing (p/o item 1)
4 – Lift gear (p/o item 1)
NOTE: The component control codes are dependent on the
machine configuration.
1{2, 3, 4
