Phaser 4600/4620/4622 Printer Service Manual
PL 12.30
5 Parts List
Revised

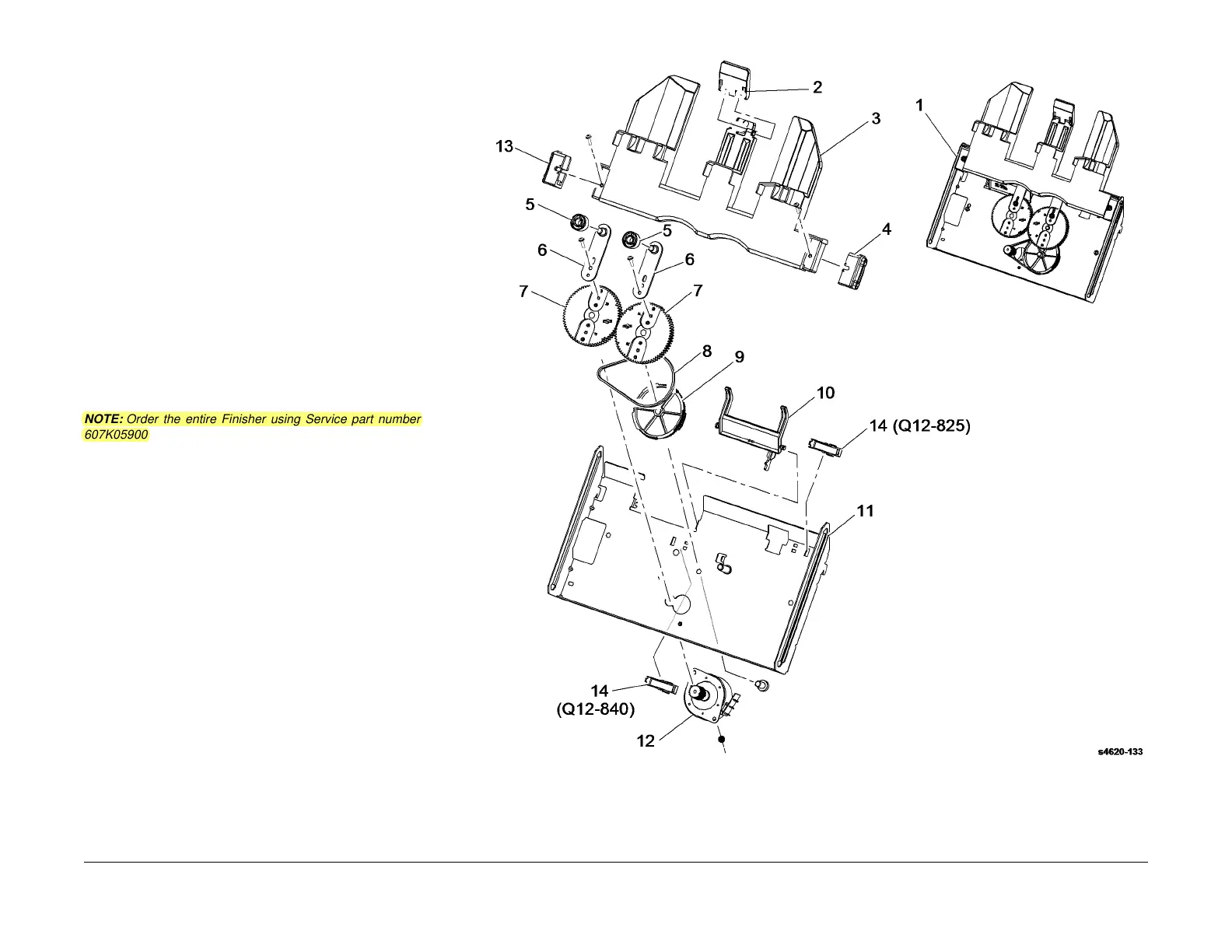

PL 12.30 Finisher Compile Tray Eject
Assembly
Item Part Description
1 – Extension tray assembly (Not
Spared)
2 – Clip (P/O PL 12.30 Item 1)
3 – Tray (P/O PL 12.30 Item 1)
4 – Right bracket (P/O PL 12.30 Item 1)
5 – Roller (P/O PL 12.30 Item 1)
6 – Link arm (P/O PL 12.30 Item 1)
7 – Idle gear (P/O PL 12.30 Item 1)
8 – Drive belt (P/O PL 12.30 Item 1)
9 – Drive gear (P/O PL 12.30 Item 1)
10 – Actuator (P/O PL 12.30 Item 1)
11 – Mounting plate (P/O PL 12.30 Item
1)
12 – Drive motor (MOT12-400) (P/O PL
12.30 Item 1)
13 – Left bracket (P/O PL 12.30 Item 1)
14 – Support finger home sensor (Q12-
825)/Stacker top sensor (Q12-840)
(P/O PL 12.30 Item 1)
NOTE: Order the entire Finisher using Service part number
607K05900 or Sales part number 097N01876.
