04/2016
5-9
Phaser 4600/4620/4622 Printer Service Manual
PL 1.15
5 Parts List
Revised

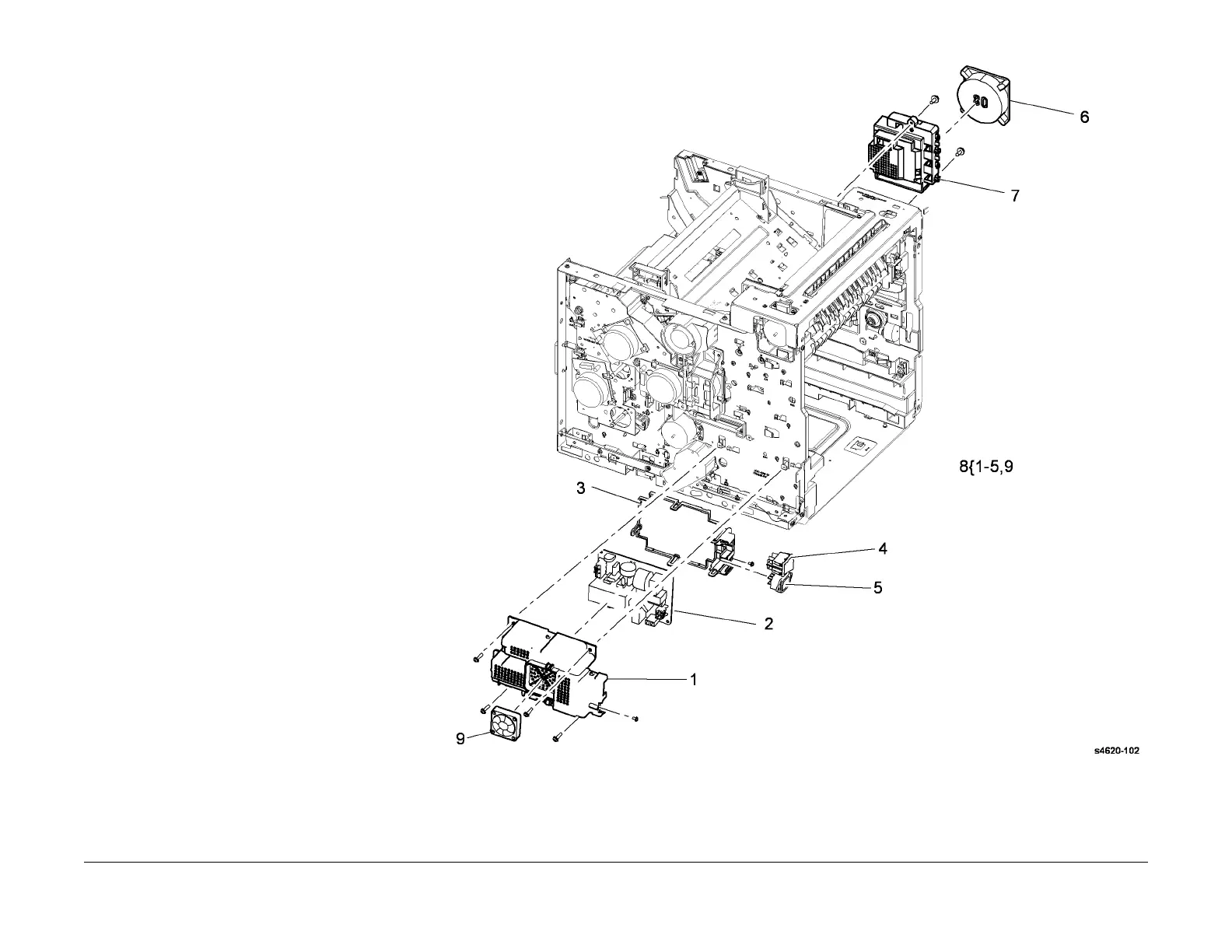

PL 1.15 Fuser Drive Board Assembly
Item Part Description
1 – Fuser drive cover (P/O PL 1.15
Item 8)
2 140N63472 Fuser drive board (110V) (REP 1.3)
– 140N63473 Fuser drive board (220V) (REP 1.2)
3 – Back cover (P/O PL 1.15 Item 8)
4 – Main power switch (P/O PL 1.15
Item 8)
5 – Main power socket (P/O PL 1.15
Item 8)
6 127N07668 SMPS fan (MOT09-500) (REP 1.7)
7 – Fan duct (Not Spared)
8 001N00525 Fuser drive board assembly (110V)
(REP 1.3)
– 140N63538 Fuser drive board assembly (220V)
9 127N07584 Fan-DC
To Next Page
