Phaser 4600/4620/4622 Printer Service Manual
WD 2, WD 3
Revised
7 Wiring Data
WD 2 IP Board Interface

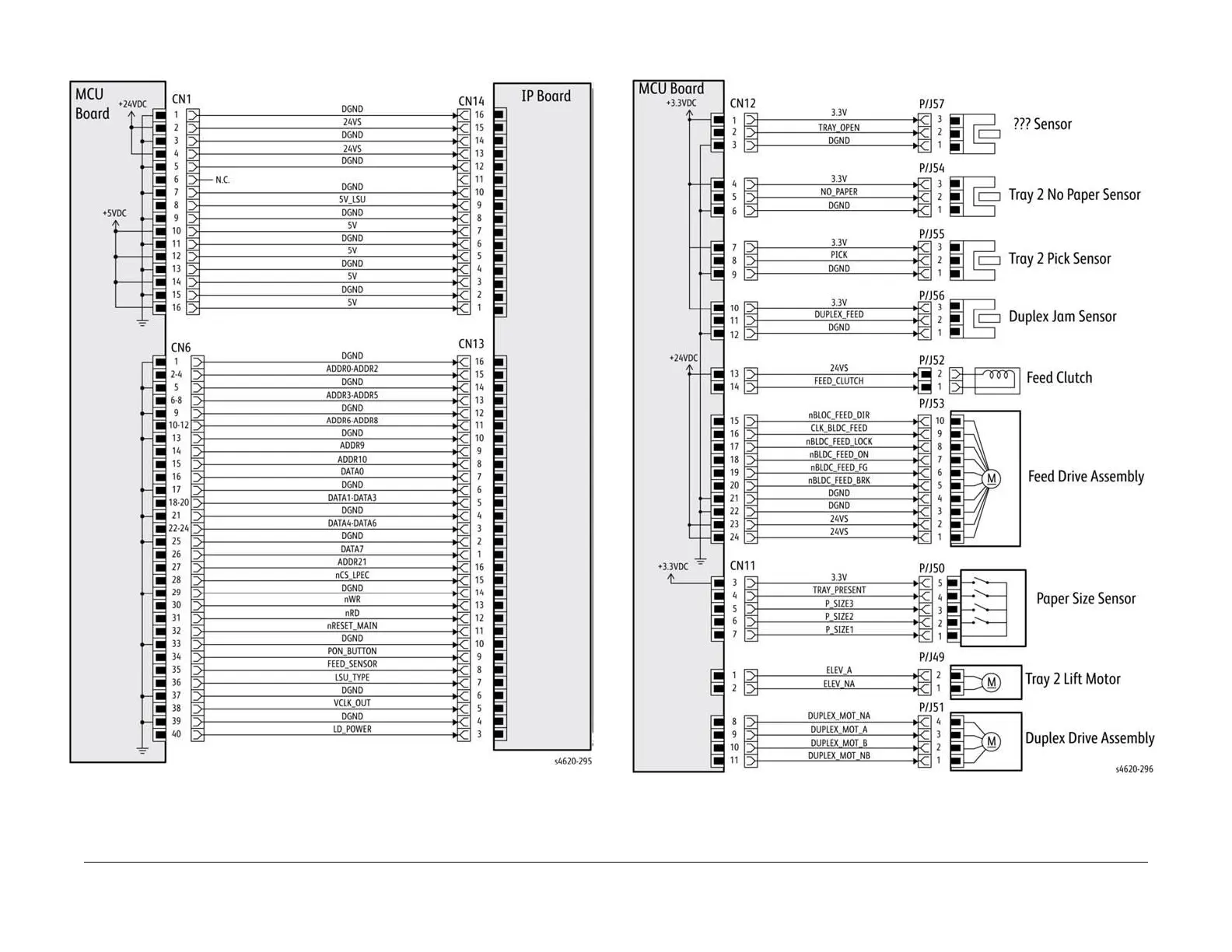

Figure 2 IP Board interface
WD 3 MCU Board (1/4)
Figure 3 MCU Board (1/4)
