Xerox Phaser 4600 Service Manual

04/2016
4-81
Phaser 4600/4620/4622 Printer Service Manual
REP 8.52, REP 9.1
4 Repairs and Adjustments
Revised

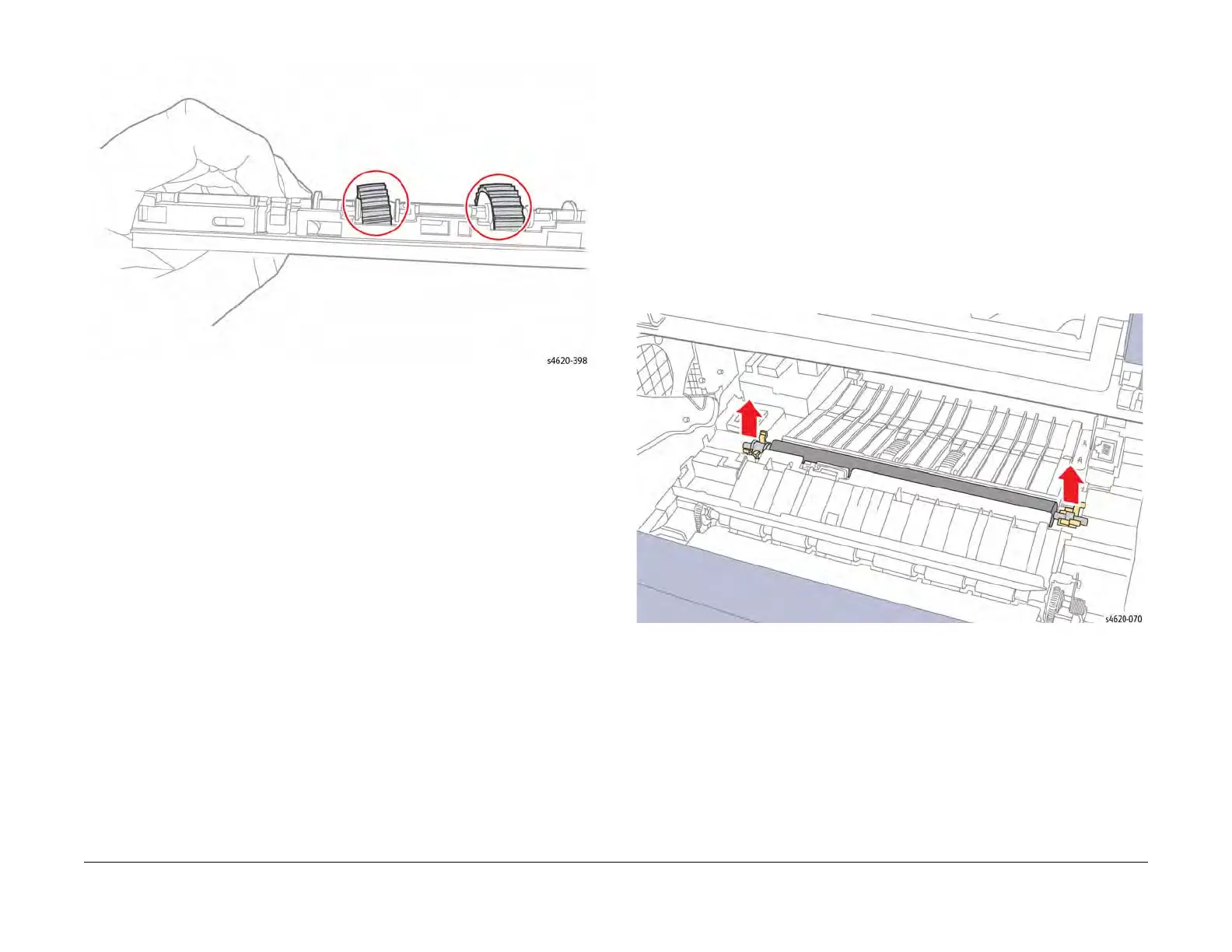

Figure 8 Idle rollers
6. Replace the belts and reassemble, reversing the disassembly procedure.
7. Reinstall the Shaft Frame Assembly (REP 8.16).
REP 9.1 Transfer Roller
Parts List on PL 9.10 Item 2
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Cover the Drum Cartridge to prevent light exposure.
1. Open the Top Door.
2. Remove the Toner Cartridge.
3. Remove the Drum Cartridge.
4. Release 2 clips that secure the Transfer Roller and remove the roller, Figure 1.
Figure 1 Removing the Transfer Roller

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
